Rohde & Schwarz

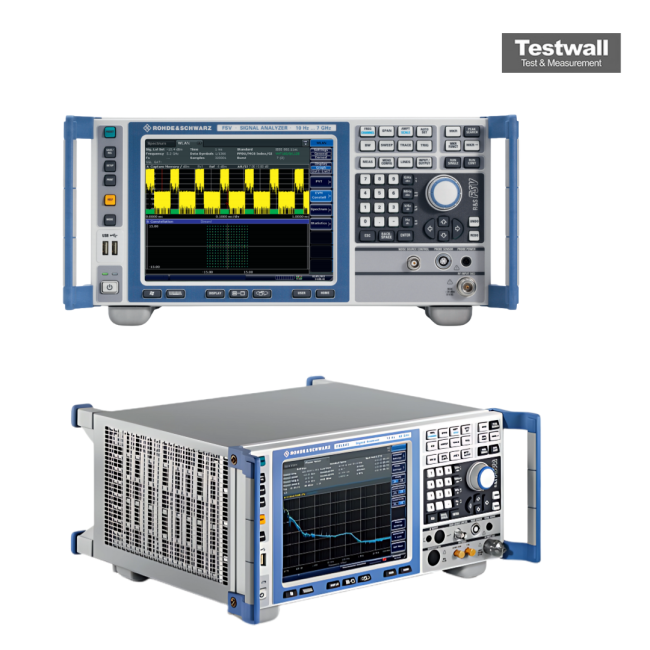

Rohde & Schwarz FSV7
10Hz - 7GHz Spectrum Analyser
10 Hz to 7 GHz Frequency Range
-155 dBm (typ.) at 1 GHz with preamplifier Display Average Noise Level (DANL)
-98 dBc/Hz at 10 kHz offset from 1 GHz carrier Phase Noise
1 Hz to 10 MHz (in 1/2/3/5 steps) Resolution Bandwidth (RBW)
+15 dBm (typ.) at 1 GHz Third-Order Intercept Point (TOI)
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 7 GHz |
| Display Average Noise Level (DANL) | -155 dBm (typ.) at 1 GHz with preamplifier |
| Phase Noise | -98 dBc/Hz at 10 kHz offset from 1 GHz carrier |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz (in 1/2/3/5 steps) |
| Third-Order Intercept Point (TOI) | +15 dBm (typ.) at 1 GHz |
| Maximum Input Power | +30 dBm (with internal attenuator) |
| Input Impedance | 50 Ohm (nominal) |
| Sweep Time | 1 ms to 16000 s (frequency domain) |
| Measurement Speed | Up to 1 million samples/s in zero span mode |
| Interface / Connectivity | USB, LAN (Ethernet), GPIB (optional), VGA output |
Rohde & Schwarz FSV7 Options:
- FSV7 - B1 - Ruggedized Housing
- FSV7 - B3 - Audio Demodulator
- FSV7 - B4 - OCXO Reference Frequency
- FSV7 - B4 - OCXO Extended Frequency Stability
- FSV7 - B5 - Additional Interfaces (IF out, video out, AUX port, trigger out, 2x USB)
- FSV7 - B9 - Tracking Generator (100 kHz to 7 GHz)
- FSV7 - B10 - External Generator Control
- FSV7 - B14 - Ultra-High Precision Frequency Reference
- FSV7 - B17 - Digital Baseband Interface
- FSV7 - B18 - Solid-State Drive (removable hard drive)
- FSV7 - B19 - Spare Hard Drive (removable hard drive)
- FSV7 - B22 - RF Preamplifier (9 kHz to 7 GHz)
- FSV7 - B25 - Electronic Attenuator, 1 dB steps
- FSV7 - B30 - DC Power Supply for 12 V Supply Voltage
- FSV7 - B32 - Lithium-Ion Battery Pack
- FSV7 - B33 - USB Mass Memory Write Protection
- FSV7 - B34 - Lithium-Ion Battery Charger
- FSV7 - B70 - 40 MHz Analysis Bandwidth
- FSV7 - B160 - 160 MHz Analysis Bandwidth
- FSV7 - B478 - 19" Rack Adapter, pre-installed ex factory
- FSV7 - K7 - Analog Modulation Analysis for AM, FM, φM
- FSV7 - K7S - FM Stereo Measurements
- FSV7 - K8 - Bluetooth/EDR Measurements
- FSV7 - K9 - Power Sensor Measurement with R&S NRP Power Sensors
- FSV7 - K10 - Analysis of GSM, EDGE and EDGE Evolution Signals
- FSV7 - K14 - Spectrogram Measurements
- FSV7 - K30 - Noise Figure and Gain Measurements
- FSV7 - K40 - Phase Noise Measurement Application
- FSV7 - K54 - EMI Measurement Application
- FSV7 - K70 - Vector Signal Analysis
- FSV7 - K72 - Analysis of 3GPP FDD Base Station Signals incl. HSPA+
- FSV7 - K73 - 3GPP FDD UE Analysis incl. HSPA+
- FSV7 - K76 - 3GPP TD-SCDMA BTS Measurements
- FSV7 - K77 - TD-SCDMA UE Measurements
- FSV7 - K82 - Analysis of CDMA2000 Base Station Signals
- FSV7 - K83 - CDMA2000 MS Measurements
- FSV7 - K84 - Analysis of 1xEV-DO Base Station Signals
- FSV7 - K85 - 1xEV-DO MS Measurements
- FSV7 - K91 - Analysis of WLAN 802.11a, b, g, j Signals
- FSV7 - K91AC - WLAN 802.11ac Measurement Application
- FSV7 - K91n - Extension of R&S FSV-K91 to 802.11n
- FSV7 - K93 - Analysis of WiMAX 802.16 SISO Signals
- FSV7 - K100 - Analysis of EUTRA/LTE FDD Downlink Signals
- FSV7 - K101 - Analysis of EUTRA/LTE FDD Uplink Signals
- FSV7 - K102 - EUTRA/LTE Downlink MIMO Measurements
- FSV7 - K104 - Analysis of EUTRA/LTE TDD Downlink Signals
- FSV7 - K105 - Analysis of EUTRA/LTE TDD Uplink Signals
| Model | FSV7 |
|---|
The Rohde & Schwarz FSV7 is a high-performance, multi-functional signal and spectrum analyzer featuring a 7 GHz frequency range and optional 160 MHz signal analysis bandwidth. It offers precise 0.4 dB level measurement uncertainty and supports analysis for multiple standards such as GSM, LTE, WLAN, and more.
Its touchscreen interface, compact build, removable hard drive, and fast data processing make it ideal for R&D, production, and on-site servicing of RF systems.
Testwall can supply the used Rohde & Schwarz FSV7, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSV7.
