Anritsu MS46121B
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 20 GHz |
| Number of Ports | 1-Port Vector Network Analyzer (VNA) |
| Dynamic Range | Up to 120 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Trace Noise | Less than 0.004 dB RMS |
| Connector Type | 3.5 mm (f) Test Port Connector |
| Interface | USB 2.0 (PC-controlled operation) |
| Power Supply | USB Bus Powered (no external power supply required) |
| Operating Temperature | 0°C to +55°C |
| Dimensions / Weight | Approximately 127 mm x 76 mm x 25 mm / 0.3 kg |
| Model | MS46121B |
|---|

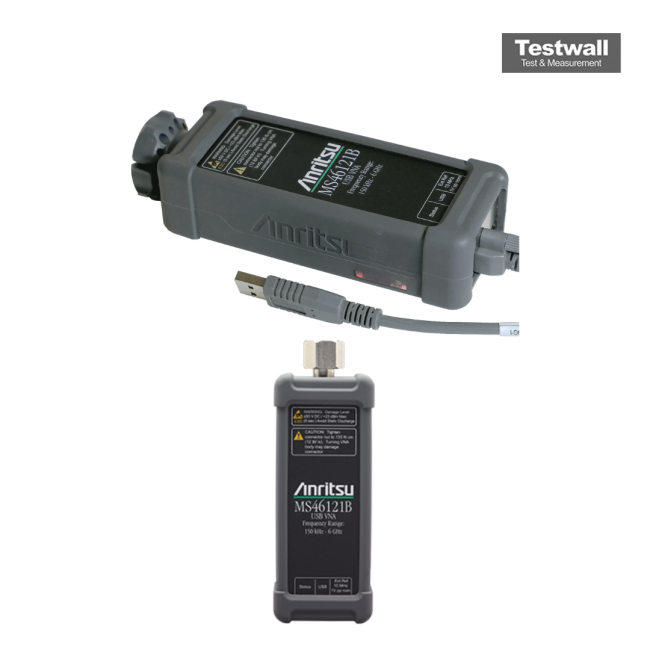

The Anritsu MS46121B is a compact 6 GHz 1-port USB vector network analyzer offering precise magnitude and phase S-parameter measurements (S11) from 5 kHz to 6 GHz, with a dynamic range exceeding 110 dB, exceptional trace stability, 50 Ω port directivity, and seamless PC integration via USB 3.0 interface.
Designed for RF component characterization, antenna matching, and system validation, the MS46121B accelerates measurement workflows with rapid sweep times, low-level trace noise, advanced calibration routines, and user-friendly control software, delivering accurate return loss, VSWR, group delay, and impedance profiling in laboratory and field environments.
Testwall’s dedicated RF test specialists ensure the used Anritsu MS46121B undergoes rigorous functional validation and performance verification, and we back every unit with global delivery, responsive technical support, and optional ISO 9001:2015 compliant calibration services, making Testwall the trusted partner for high-precision network analysis solutions.
