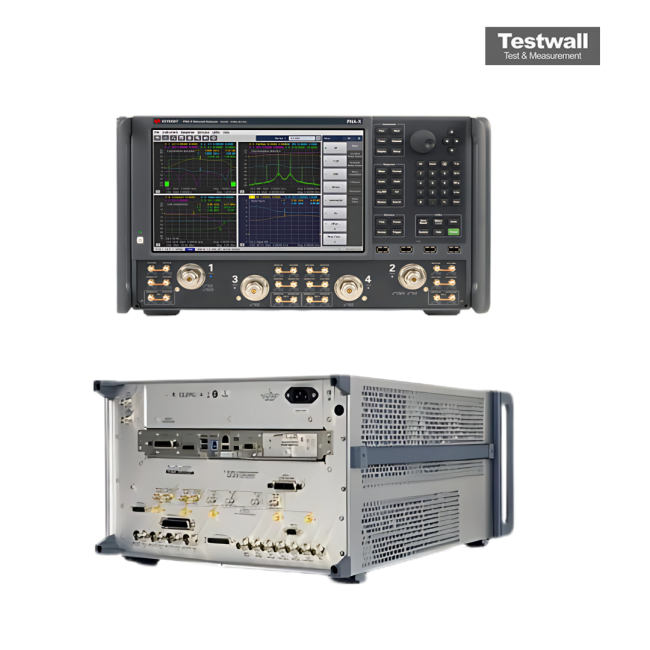

Keysight (Agilent) N5225B-200
2-port, 10 MHz to 50 GHz PNA Network Analyzer, Option 200
10 MHz to 50 GHz Frequency Range
2 Number of Ports
101 dB (spec.), 116 dB (typ.) Dynamic Range
-30 dBm … +7 dBm Output Power Range
Option 200: standard test set Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 2 |
| Dynamic Range | 101 dB (spec.), 116 dB (typ.) |
| Output Power Range | -30 dBm … +7 dBm |
| Configuration | Option 200: standard test set |
| Internal Sources | 1 |
| Impedance | 50 Ω |
| Connector Type | 2.4 mm (m) |
| IF Bandwidth | 1 Hz … 15 MHz |
| Trace Noise | 0.004 dB rms |
| Measurement Parameters | S-parameters, group delay, phase noise (opt.) |
| Display | 12.1" LCD, 1280×800, touchscreen |
| Interfaces | LAN, 2× GPIB, USB, HiSLIP |
| Series | PNA |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5225B-200 | 2 | 10 MHz to 50 GHz | standard test set |
| N5225B-201 | 2 | 10 MHz to 50 GHz | configurable test set |
| N5225B-205 | 2 | 900 Hz to 50 GHz | configurable test set, low-frequency extension to 900 Hz |
| N5225B-217 | 2 | 10 MHz to 50 GHz | configurable test set, source step attenuators, receiver step attenuators |
| N5225B-219 | 2 | 10 MHz to 50 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5225B-220 | 2 | 900 Hz to 50 GHz | source step attenuators, receiver step attenuators, low-frequency extension to 900 Hz |
| N5225B-400 | 4 | 10 MHz to 50 GHz | standard test set |
| N5225B-401 | 4 | 10 MHz to 50 GHz | configurable test set |
| N5225B-405 | 4 | 900 Hz to 50 GHz | configurable test set, low-frequency extension to 900 Hz |
| N5225B-417 | 4 | 10 MHz to 50 GHz | configurable test set, source step attenuators, receiver step attenuators |
| N5225B-419 | 4 | 10 MHz to 50 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5225B-420 | 4 | 900 Hz to 50 GHz | source step attenuators, receiver step attenuators, low-frequency extension to 900 Hz |
Keysight (Agilent) N5225B-200 Options:
- N5225B - 210 - 2-port, single source, with metrology configuration
- N5225B - 410 - 4-port, dual source, with metrology configuration

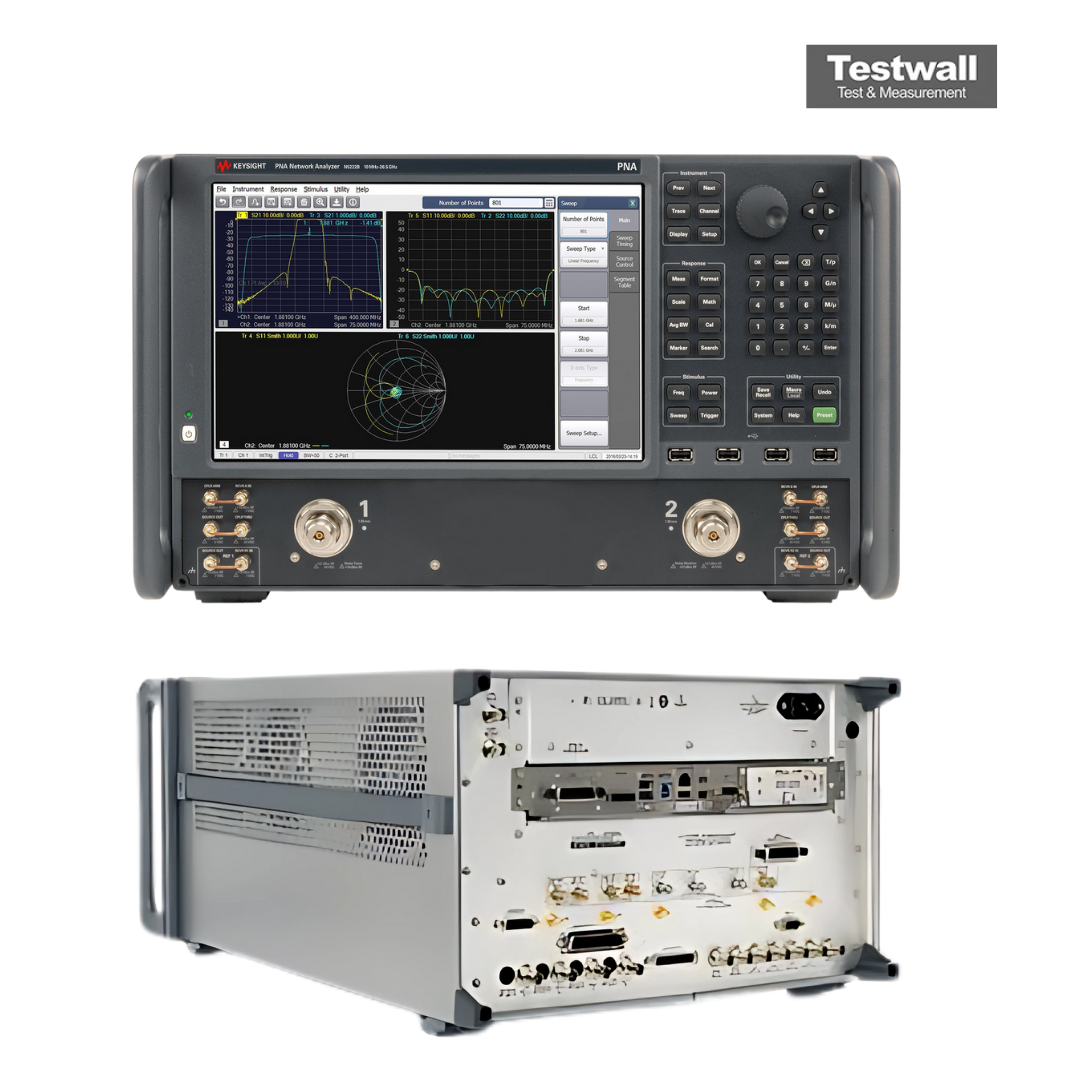

The Keysight (Agilent) N5225B-200 is a 2-port PNA vector network analyzer covering 10 MHz to 50 GHz. Option 200 configuration: standard test set.
