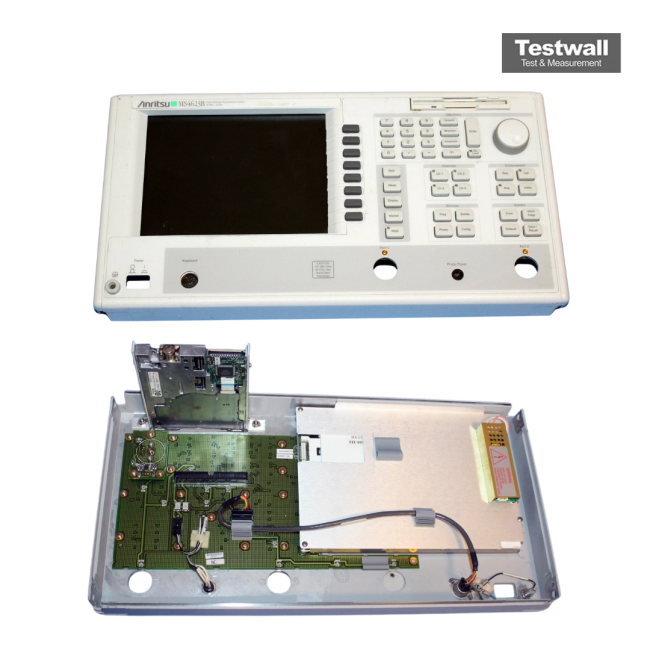

Anritsu MS4623A
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 3-Port Vector Network Analyzer |
| Dynamic Range | 100 dB typical |
| Output Power Range | -60 dBm to +3 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, and magnitude |
| Connector Type | Type-N 50 Ohm |
| Impedance | 50 Ohm |
| Display | 10.4-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, RS-232, parallel port |
| Power Requirements | 100–240 VAC, 50/60 Hz, 350 VA maximum |
Anritsu MS4623A Options:
- MS4623A - Option 1 - Rack mount kit with slides
- MS4623A - Option 2 - Time domain
- MS4623A - Option 5 - Frequency translation group delay
- MS4623A - Option 7 - T/R step attenuator (only for A models, standard on B)
- MS4623A - Option 8 - Harmonic measurement
- MS4623A - Option 11 - Test Port connector (standard connector is N-female, no cost option for 3.5 mm (male), 3.5 mm (female), N-male, or GPC-7)
| Model | MS4623A |
|---|
The Anritsu MS4623A is a vector or scalar network analyzer with frequency coverage up to 18 GHz, providing versatile RF and microwave measurement capabilities. It supports both one‑ and two‑port configurations, enabling high-accuracy trace measurement for demanding applications. With scalar and metric options, this instrument ensures precision across a wide range of component evaluations.
Designed for component testing and calibration-oriented evaluation, the Anritsu MS4623A offers external control capabilities for flexible integration into measurement systems. Its robust performance ensures consistent and reliable results in laboratory and production environments.
Testwall can supply the used Anritsu MS4623A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4623A.
