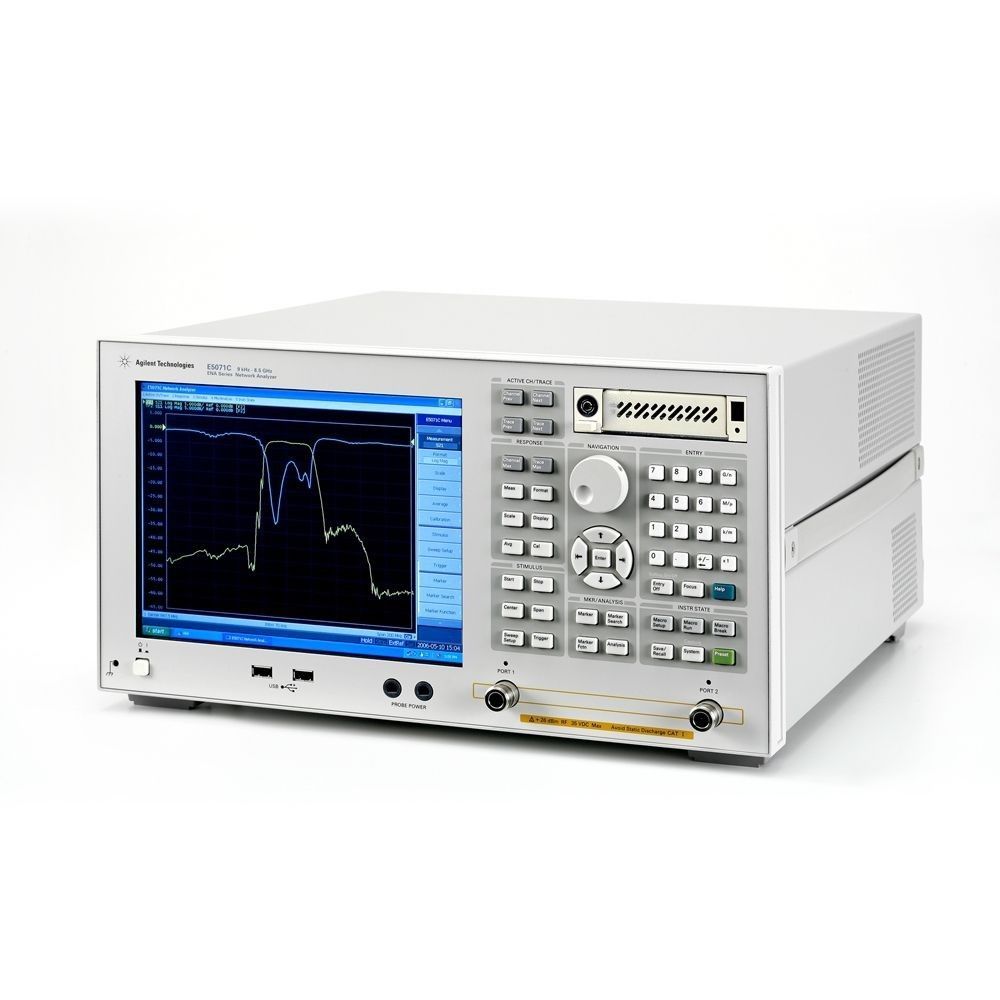

Keysight (Agilent) E5071C-265
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | 123 dB specified, 130 dB typical (10 Hz IFBW) |
| Output Power Range | -55 dBm to +10 dBm |
| Bias Tees | Yes, built-in |
| Measurement Parameters | S-parameters, mixed-mode (balanced) S-parameters, impedance, group delay, phase |
| IF Bandwidth | 10 Hz to 1.5 MHz |
| Number of Points | 2 to 20,001 points |
| Trace Noise | 0.004 dB rms at 70 kHz IFBW (10 MHz to 4.38 GHz) |
| Connector Type | Type-N female, 50 Ohm |
| Display | 10.4-inch XGA colour LCD touchscreen |
| Interfaces | LAN, USB, GPIB, Handler I/O |
Keysight Technologies E5071C-265 Options:
- E5071C-265 - 1E5 - High stability time base
- E5071C-265 - UNQ - Standard stability time base
- E5071C-265 - 017 - Removable hard disk drive
- E5071C-265 - 019 - Standard hard disk drive
- E5071C-265 - 008 - Frequency offset mode
- E5071C-265 - TDR - Enhanced time domain analysis
- E5071C-265 - 010 - Time domain analysis
- E5071C-265 - 790 - Measurement Wizard Assistant software
- E5071C-265 - 1CM - Rack mount kit
- E5071C-265 - 1CN - Front handle kit
- E5071C-265 - 1CP - Rack mount and front handle kit
- E5071C-265 - 810 - Adds a keyboard
- E5071C-265 - 820 - Adds a mouse
- E5071C-265 - 1A7 - ISO 17025 compliant calibration
- E5071C-265 - A6J - ANSI Z540 compliant calibration
The Keysight (Agilent) E5071C-265 is a 2-port ENA vector network analyzer covering 100 kHz to 6.5 GHz with built-in bias tees. It offers up to 123 dB specified dynamic range (130 dB typical), a -55 to +10 dBm output power range and up to 20,001 points per sweep.
It supports full 2-port S-parameter and balanced (mixed-mode) measurements, fixture embedding/de-embedding and optional time domain (TDR) and frequency-offset analysis, with a 10.4″ XGA touchscreen, Type-N test ports and LAN/USB/GPIB connectivity.
Testwall can supply the used Keysight (Agilent) E5071C-265, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5071C-265.
