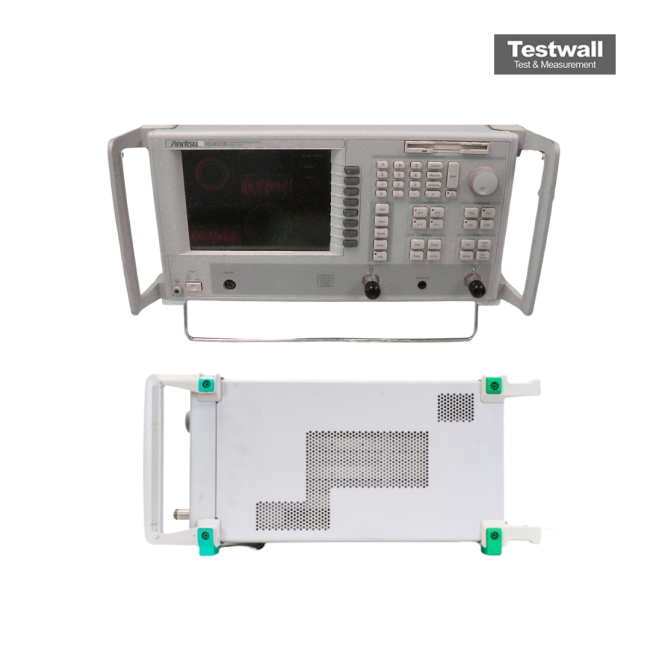

Anritsu MS4623B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Greater than 100 dB |
| Output Power Range | -60 dBm to +3 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Connector Type | N-Type (50 Ohm) |
| IF Bandwidth | 10 Hz to 30 kHz |
| Display | 10.4-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, RS-232, and Ethernet (LAN) |
| Calibration Methods | Full 2-Port SOLT, TRL, LRL, and LRM calibration supported |
| Model | MS4623B |
|---|
The Anritsu MS4623B Network Analyzer covers a frequency range of 10 MHz to 6 GHz, with a power range from +7 to –85 dBm and level accuracy of ±1 dB. It offers a minimum sweep range of 20 dB, harmonics at –30 dBc, and frequency stability under 5 ppm/year. This instrument accurately measures the complex transmission and reflection characteristics of two-port devices, delivering amplitude and phase information across the frequency spectrum.
Engineered for precision, the MS4623B samples incident signals, separates transmitted and reflected waves, and calculates reflection and transmission coefficients. It is widely used in RF testing, materials measurement, and signal integrity monitoring applications.
Testwall can supply the used Anritsu MS4623B Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4623B Network Analyzer.
