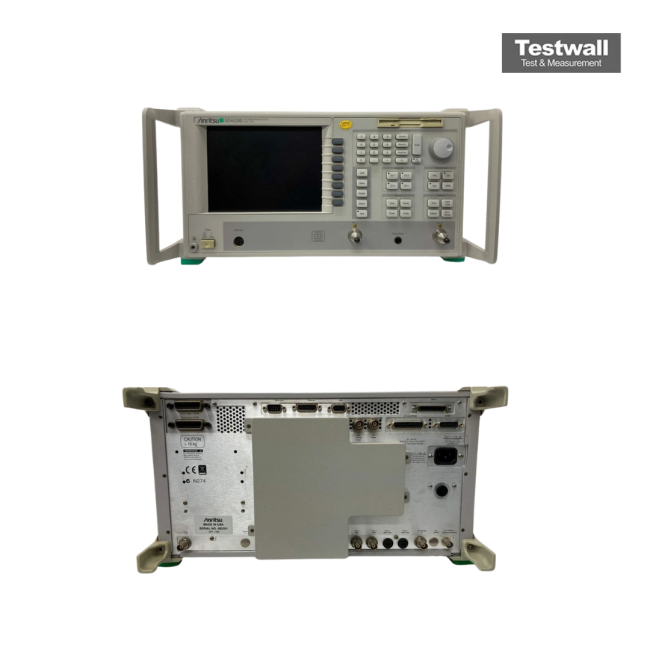

Anritsu MS4624B
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 4 GHz |
| Number of Ports | 4-Port Vector Network Analyzer |
| Dynamic Range | Greater than 100 dB |
| Output Power Range | -60 dBm to +3 dBm |
| Measurement Parameters | S-Parameters (S11, S21, S12, S22, and all 16 S-parameters for 4-port) |
| Connector Type | N-Type (Female), 50 Ohm |
| Display | 10.4-inch Color LCD Display |
| Impedance | 50 Ohm Standard |
| Interface/Connectivity | GPIB, Ethernet (LAN), USB |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Anritsu MS4624B Options:
- MS4624B - MS4600/1 - Rack Mount Kit with Slides
- MS4624B - MS4600/1A - Rack Mount Kit with Handles
- MS4624B - MS4600/2 - Time (Distance) Domain
- MS4624B - MS4600/3E - 9 GHz 2nd Source for MS4624B (Second Internal Source, Third Test Port)
- MS4624B - MS4600/4 - 3 GHz Noise Figure (50 MHz to 3000 MHz)
- MS4624B - MS4600/4B - 6 GHz Noise Figure (50 MHz to 6000 MHz)
- MS4624B - MS4600/5 - Frequency Translating Group Delay (FTGD)
- MS4624B - MS4600/6 - Third Test Port Without Second Internal Source
- MS4624B - MS4600/8 - Harmonic Measurements
- MS4624B - MS4600/11NM - Replaces N female with N male Test Port Adapters
- MS4624B - MS4600/11S - Replaces N female with 3.5mm male Test Port Adapters
- MS4624B - MS4600/11SF - Replaces N female with 3.5mm female Test Port Adapters
- MS4624B - MS4600/11A - Replaces N female with GPC-7 male Test Port Adapters
- MS4624B - MS4600/13 - Intermodulation Distortion Measurements
- MS4624B - MS4600/24 - Processing Upgrade
- MS4624B - MS4600/98 - Z540/Guide 25 Calibration
- MS4624B - MS4600/99 - Premium Calibration
- MS4624B - ES31 - 3 Year On-Site Repair
- MS4624B - ES37 - 3 Year On-Site Standard Calibration
- MS4624B - ES38 - 3 Year On-Site Premium Calibration
- MS4624B - ES32 - 3 Year Return-to-Service Center Standard Calibration
- MS4624B - ES34 - 3 Year Return-to-Service Center Premium Calibration
- MS4624B - ES50 - 5 Year Return-to-Service Center Repair Only
- MS4624B - ES52 - 5 Year Return-to-Service Center Standard Calibration
- MS4624B - ES54 - 5 Year Return-to-Service Center Premium Calibration
- MS4624B - ES55 - 5 Year Return-to-Service Center Repair plus Standard Calibration
- MS4624B - ES56 - 5 Year Return-to-Service Center Repair plus Premium Calibration
| Model | MS4624B |
|---|
The Anritsu MS4624B Network Analyzer offers precise measurement of complex transmission and reflection characteristics across two-port devices from 10 MHz to 9 GHz. Featuring an output power range of +7 to -85 dBm and an input noise level of -115 dBm, it ensures highly accurate evaluation of wireless components such as SAW filters, amplifiers, and mixers.
This analyzer is part of the Scorpion VNMS family, optimized for 2-port and 3-port applications, delivering reliable performance in signal testing and analysis with exceptional frequency range coverage.
Testwall can supply the used Anritsu MS4624B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4624B.
