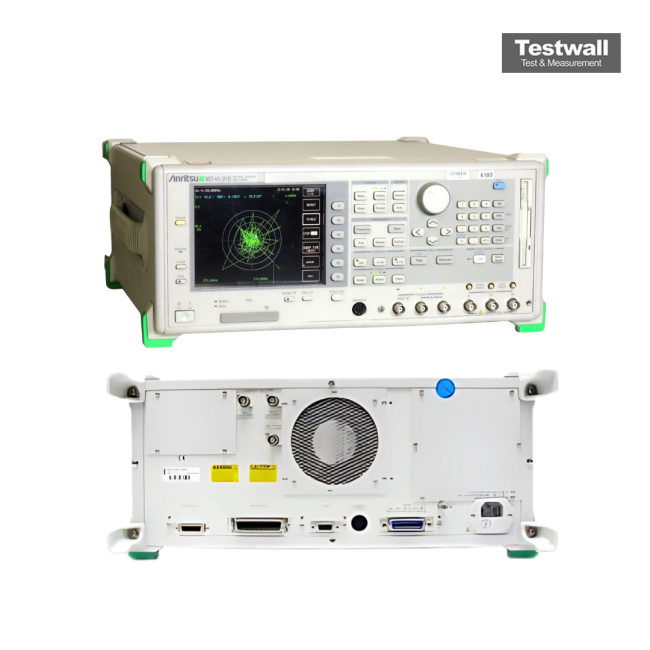

Anritsu MS4630B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 300 MHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, gain, phase |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -60 dBm to +10 dBm |
| Number of Ports | 2-port vector network analyzer |
| Interface / Connectivity | GPIB (IEEE-488), RS-232C |
| Display | Built-in CRT display with multiple trace formats |
| Impedance | 50 Ohm standard (75 Ohm optional) |
| Number of Data Points | Up to 1601 points per sweep |
| Power Requirements | 100/120/220/240 VAC, 48 to 66 Hz |
| Model | MS4630B |
|---|
The Anritsu MS4630B accelerates production‑line measurements with a sweep rate of 150 µs per point, delivered by a high‑speed synthesizer and DSP. It enables precise, high‑speed evaluation of IF filter resonance and group delay, plus impedance characterization of resonators used in AV equipment and personal computers. Strengthened post‑processing macros expand data analysis and raise total throughput, ideal for demanding electronics manufacturing and inspection.
Versus MS3401A/B and MS3606B, sweep is 3× faster and group‑delay accuracy/stability improves by >10×. Dynamic range reaches 120 dB (RBW 1 kHz) with a reduced weight. GPIB and PTA processing are 30–50% faster than MS4630A, and a list‑sweep function simplifies setup.
Testwall can supply the used Anritsu MS4630B, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4630B.
