Rohde & Schwarz

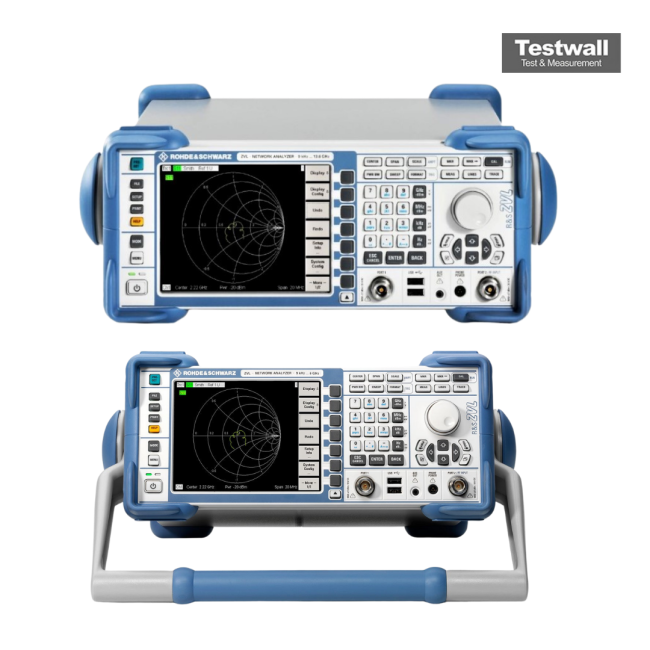

Rohde & Schwarz ZVL13
2-port, 13.6 GHz Network Analyzer
9 kHz to 13.6 GHz Frequency Range
2 Number of Ports
123 dB Dynamic Range
-30 dBm to +3 dBm Output Power
S-parameters (S11, S21, S12, S22), impedance, admittance, group delay Measurement Parameters
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 13.6 GHz |
| Number of Ports | 2 |
| Dynamic Range | 123 dB |
| Output Power | -30 dBm to +3 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| IF Bandwidth | 1 Hz to 100 kHz |
| Trace Noise | 0.004 dB RMS |
| Display | 10.4-inch color TFT LCD, 1024 x 768 resolution |
| Connector Type | N-type female (50 Ω) |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Model | ZVL13 |
|---|
The Rohde & Schwarz ZVL13 is a compact 2-port vector network analyzer offering 9 kHz to 13.6 GHz frequency range, with optional spectrum and power measurement. It delivers exceptional dynamic range up to 123 dB and fast sweeps down to 100 ms.
Its portability, USB/LAN/VGA interfaces, and support for wireless standards make it ideal for R&D, production, and field use.
Testwall can supply the used Rohde & Schwarz ZVL13, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz ZVL13.
