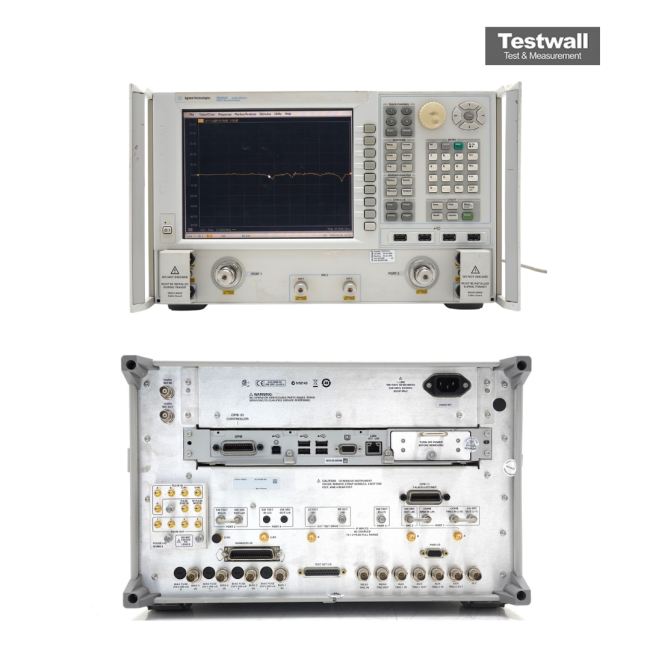

Keysight (Agilent) N5242A-200
2-port, 10 MHz to 26.5 GHz PNA-X Network Analyzer, Option 200
10 MHz to 26.5 GHz Frequency Range
2 Number of Ports
127 dB (spec.), 139 dB (typ.) Dynamic Range
max. +13 dBm Output Power Range
Option 200: configurable test set (front-panel access loops) Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 26.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | 127 dB (spec.), 139 dB (typ.) |
| Output Power Range | max. +13 dBm |
| Configuration | Option 200: configurable test set (front-panel access loops) |
| Internal Sources | 1 |
| Impedance | 50 Ω |
| Connector Type | 3.5 mm (m) |
| IF Bandwidth | 1 Hz … 5 MHz |
| Trace Noise | 0.002 dB rms |
| Measurement Parameters | S-parameters, noise figure (opt.), gain compression, IMD, pulsed RF |
| Display | 10.4" LCD, 1024×768 |
| Interfaces | LAN, USB, GPIB |
| Series | PNA-X |
Available configurations
| Model | Ports | Frequency range | Configuration |
| N5242A-200 | 2 | 10 MHz to 26.5 GHz | configurable test set |
| N5242A-219 | 2 | 10 MHz to 26.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5242A-224 | 2 | 10 MHz to 26.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees, second internal source, internal combiner and switches |
| N5242A-400 | 4 | 10 MHz to 26.5 GHz | |
| N5242A-419 | 4 | 10 MHz to 26.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees |
| N5242A-423 | 4 | 10 MHz to 26.5 GHz | configurable test set, source step attenuators, receiver step attenuators, built-in bias tees, internal combiner and switches |
Keysight (Agilent) N5242A-200 Options:
- N5242A-200 - 200 - 26.5 GHz 2-port PNA-X Network Analyzer
- N5242A-200 - 400 - 26.5 GHz 4-port PNA-X Network Analyzer
- N5242A-200 - 419 - Internal pulse modulators and pulse generators
- N5242A-200 - 423 - Additional internal signal routing switches
The Keysight (Agilent) N5242A-200 is a 2-port PNA-X vector network analyzer covering 10 MHz to 26.5 GHz. Option 200 configuration: configurable test set (front-panel access loops).
Testwall can supply the used Keysight (Agilent) N5242A-200, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5242A-200.
