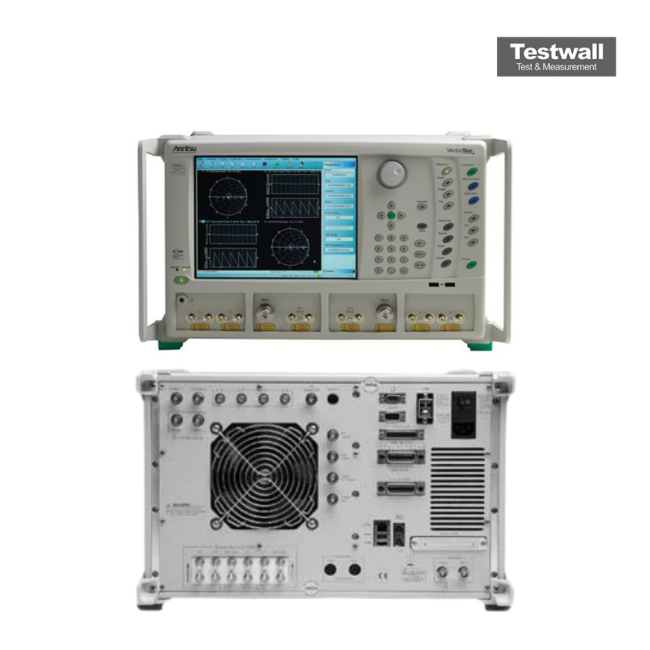

Anritsu MS4644A
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 40 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -50 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| IF Bandwidth | 1 Hz to 1 MHz |
| Number of Data Points | 2 to 100,001 points per sweep |
| Display | 10.4-inch XGA color LCD touchscreen |
| Connector Type | 2.92 mm (K) female connectors |
| Power Requirements | 100–240 VAC, 50/60 Hz, 350 W maximum |
Anritsu MS4644A Options:
- MS4644B - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19" universal rack
- MS4640B - 002 - Time Domain
- MS4640B - 004 - Additional Serial-ATA (SATA) Solid State Drive (SSD) with OS and VectorStar Application Software
- MS4640B - 007 - Receiver Offset
- MS464xB - 031 - Dual Source Architecture
- MS4640B - 035 - IF Digitizer
- MS4640B - 041 - Noise Figure, requires Option 051, 061, or 062
- MS4640B - 042 - PulseView™, requires Option 035
- MS4640B - 043 - DifferentialView™
- MS4644B - 051 - Direct Access Loops, not available with Options 061 or 062
- MS4644B - 061 - Active Measurements Suite, with 2 Step Attenuators
- MS4644B - 062 - Active Measurements Suite, with 4 Step Attenuators
- MS4640B - 070 - 70 kHz Low-End Frequency Extension
- MS4640B - 098 - Z540/Guide 25 Calibration, No Data
- MS4640B - 099 - Premium Calibration, With Data
| Model | MS4644A |
|---|
The Anritsu MS4644A Vector Network Analyzer extends frequency coverage up to 40 GHz, ideal for mmWave and high-speed RF component testing. It supports 12-term SOLT and sliding-load calibration, enabling low uncertainty S-parameter measurements. The MS4644A includes high dynamic range, low noise performance, and multi-port/differential mode support for advanced RF characterization.
This analyzer excels in precise mmWave and differential network testing, supporting AutoCal and sliding-load calibrations with broad operational frequency flexibility.
Testwall can supply the used Anritsu MS4644A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4644A.
