Anritsu

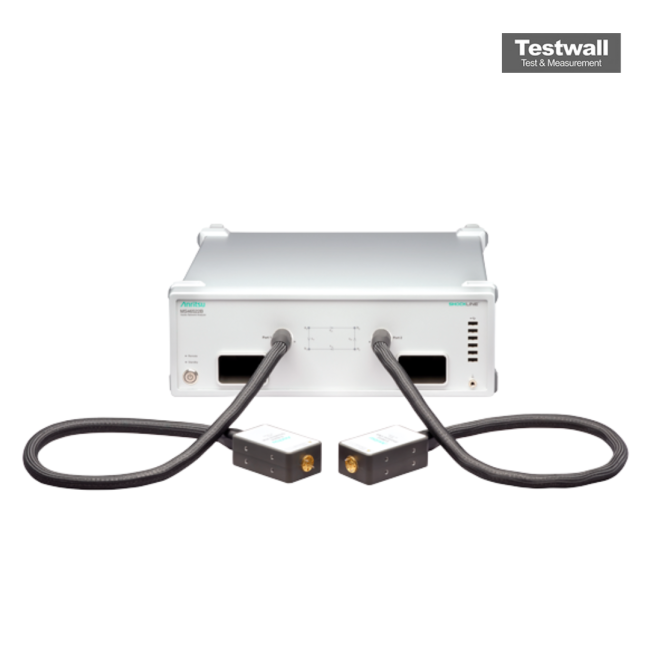

Anritsu MS46522B-043
ShockLine 2-Port Performance VNA, 1MHz - 43.5GHz
1 MHz to 43.5 GHz Frequency Range
2 Number of Ports
Up to 130 dB Dynamic Range
-45 dBm to +3 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 43.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 130 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Connector Type | 2.92 mm (K) connectors |
| Display | 12.1-inch XGA color LCD touchscreen |
| IF Bandwidth | 1 Hz to 500 kHz |
| Number of Data Points | 2 to 100,001 points per sweep |
| Interface/Connectivity | USB, LAN (Ethernet), GPIB (optional) |
Anritsu MS46522B-043 Options:
- MS46522B-043 - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19 inch universal rack
- MS46522B-043 - 002 - Time Domain with Time Gating
- MS46522B-043 - 022 - Advanced Time Domain
- MS46522B-043 - 024 - Universal Fixture Extraction
- MS46522B-043 - 097 - Accredited Calibration, with data
- MS46522B-043 - 098 - Standard Calibration, ISO 17025 compliant, without data
- MS46522B-043 - 099 - Premium Calibration, ISO 17025 compliant, with data
| Model | MS46522B-043 |
|---|
The Anritsu MS46522B-043 Vector Network Analyzer operates from 50 kHz to 43.5 GHz with extended-K ports, offering superior dynamic range and directivity for precise microwave measurements. It features options for time-domain analysis and fixture extraction.
Ideal for advanced testing environments, the MS46522B-043 supports workflow automation via ShockLine’s intuitive software interface, enhancing operational efficiency and test accuracy.
Testwall can supply the used Anritsu MS46522B-043, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46522B-043.
