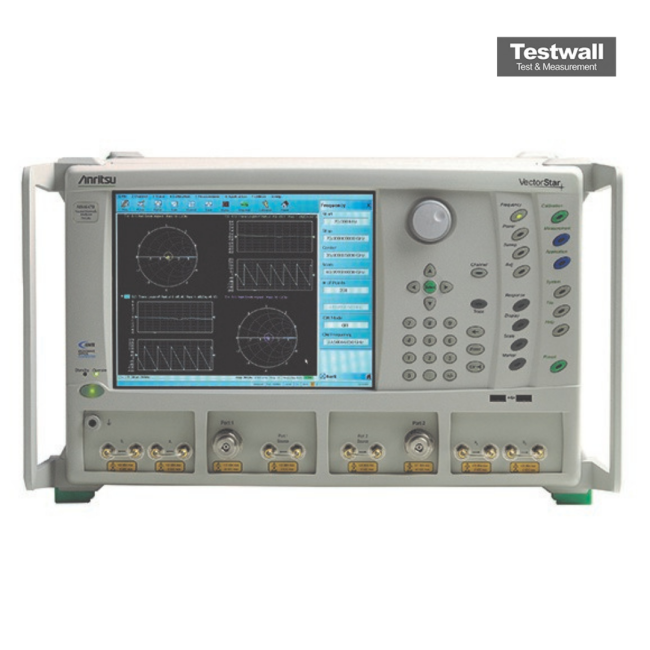

Anritsu MS4647B 10MHz-70GHz Vector network analyzer 2-port
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 70 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 110 dB |
| Output Power Range | -40 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS typical |
| Measurement Speed | 72 µs per point (fast sweep mode) |
| Connector Type | 1.85 mm (V-connector), 50 Ohm |
| IF Bandwidth | 1 Hz to 100 kHz |
| Number of Data Points | 2 to 100,001 points per sweep |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Anritsu MS4647B 10MHz-70GHz Vector network analyzer 2-port Options:
- MS4647B - 001 - Rack Mount, adds handles and removes feet for shelf-mounting into a 19" universal rack
- MS4647B - 002 - Time Domain
- MS4647B - 004 - Additional Serial-ATA (SATA) Solid State Drive (SSD) with OS and VectorStar Application Software
- MS4647B - 007 - Receiver Offset
- MS4647B - 031 - Dual Source Architecture
- MS4647B - 032 - Internal RF Combiner, requires Option 031
- MS4647B - 035 - IF Digitizer
- MS4647B - 041 - Noise Figure, requires Option 051, 061, or 062
- MS4647B - 042 - PulseView™, requires Option 035
- MS4647B - 043 - DifferentialView™
- MS4647B - 044 - IMDView™
- MS4647B - 051 - Direct Access Loops for MS4647B, not available with Options 061 or 062
- MS4647B - 061 - Active Measurements Suite, For MS4647B, with 2 Step Attenuators
- MS4647B - 062 - Active Measurements Suite, For MS4647B, with 4 Step Attenuators
- MS4647B - 070 - 70 kHz Low-End Frequency Extension
- MS4647B - 098 - Z540/Guide 25 Calibration, No Data
- MS4647B - 099 - Premium Calibration, With Data
| Model | MS4647B |
|---|
The Anritsu MS4647B VectorStar VNA offers 10 MHz to 70 GHz coverage, expandable up to 145 GHz with external modules. It delivers up to 142 dB dynamic range, +14 dBm output power, long record lengths, and high-resolution time-domain displays. It supports multi-port, mixed-mode, and differential S-parameter measurements, with AutoCal calibration minimizing measurement uncertainty.
Engineered for RF, microwave, and mmWave development, the MS4647B is ideal for antennas, filters, and on‑wafer device characterization. Its advanced interface and high accuracy support demanding research and design applications.
Testwall can supply the used Anritsu MS4647B Vector Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS4647B Vector Network Analyzer.
