Anritsu MS46524B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 148 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS (at 10 Hz IF bandwidth) |
| Measurement Speed | 4 µs per point (fast sweep mode) |
| IF Bandwidth | 1 Hz to 1 MHz |
| Display | 12.1-inch color LCD touchscreen |
| Connector Type | 3.5 mm (f) test port connectors |
| Operating Temperature | 0°C to +50°C |
Anritsu MS46524B Options:
- MS46524B - 001 - Rack Mount, Adds handles and removes feet for shelf-mounting into a 19" universal rack
- MS46524B - 002 - Time Domain
- MS46524B - 004 - Additional Solid State Drive (SSD), Serial-ATA, With OS and VectorStar Application Software, quickly field pluggable at rear panel
- MS46524B - 007 - Receiver Offset
- MS46524B - 041 - Noise Figure, requires Option 051, 061, or 062
- MS46524B - 051 - Direct Access Loops
- MS46524B - 061 - Active Measurements Suite, With 2 Step Attenuators
- MS46524B - 062 - Active Measurements Suite, With 4 Step Attenuators
- MS46524B - 070 - 70 kHz Low-End Frequency Extension
- MS46524B - 080 - Modular Broadband/Millimeter-Wave Capability, for VNAs without Option 051, 061, or 062
- MS46524B - 081 - Modular Broadband/Millimeter-Wave Capability, for VNAs with Option 051, 061, or 062
- MS46524B - 082 - Millimeter-Wave Connection Capability, for VNAs without Option 051, 061, or 062
- MS46524B - 083 - Millimeter-Wave Connection Capability, for VNAs with Option 051, 061, or 062
- MS46524B - 098 - Z540/Guide 25 Calibration, No Data
- MS46524B - 099 - Premium Calibration, With Data
| Model | MS46524B |
|---|

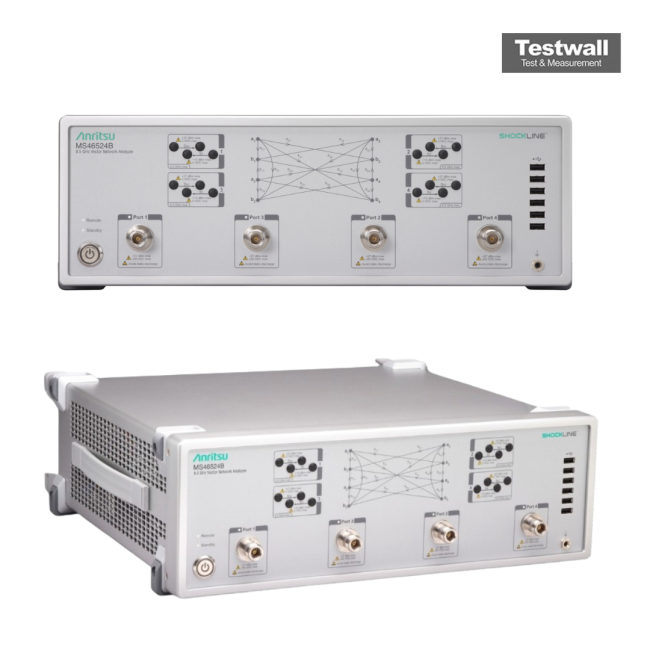

The Anritsu ShockLine MS46524B is a 4-port performance vector network analyzer (VNA) offering coverage up to 43.5 GHz. It delivers specified performance with Extended K™ ports, wide dynamic range, and minimized measurement uncertainty through excellent corrected directivity. Options 10, 20, and 43 expand RF to microwave frequency capabilities, while advanced features like SmartCal™ auto calibration and UFX de-embedding tools ensure efficient and accurate testing.
Designed for characterizing multiport 5G devices, differential cables, and high-speed interconnects, the MS46524B provides advanced time domain options including TDR-like analysis, real-time mixed-mode measurements, and SI debugging. Its compact 3U chassis with modern LAN interface enables seamless integration and remote control.
Testwall can supply the used Anritsu MS46524B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS46524B.
