Keysight (Agilent)

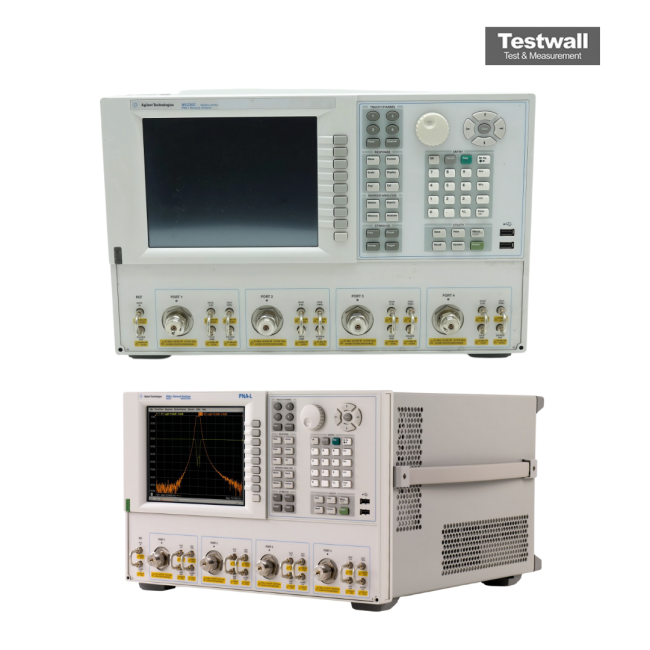

Keysight (Agilent) N5230C-425
4-port, 40GHz PNA-L Network Analyzer
300 kHz to 20 GHz Frequency Range
4 Number of Ports
122 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB RMS Trace Noise (Magnitude)
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 4 |
| Dynamic Range | 122 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise (Magnitude) | 0.004 dB RMS |
| Test Port Connector Type | 3.5 mm (f) |
| Power Sweep Range | 15 dB |
| IF Bandwidth Range | 1 Hz to 40 kHz |
| Number of Points per Sweep | 1 to 16,001 |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies N5230C-425 Options:
- N5230C-425 - 020 - Standard test set and standard power range, 300 kHz to 6 GHz
- N5230C-425 - 025 - Configurable test set and extended power range, 300 kHz to 6 GHz
- N5230C-425 - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230C-425 - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230C-425 - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230C-425 - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230C-425 - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230C-425 - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230C-425 - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230C-425 - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230C-425 - 080 - Noise figure measurement application
| Model | N5230C-425 |
|---|
The Keysight (Agilent) N5230C-425 offers a complete 4-port PNA-L setup with integrated bias-tees and attenuators, ideal for extensive DC, pulsed, and RF testing needs across a 10 MHz–50 GHz frequency range.
This scalable solution supports future upgrades and suits laboratories requiring multi-port analysis with full signal integrity and flexible configuration options.
Testwall can supply the used Keysight (Agilent) N5230C-425, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230C-425.
