Anritsu MS9020B
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Accuracy | ±0.2 nm |
| Wavelength Resolution | 0.1 nm |
| Dynamic Range | 50 dB |
| Level Measurement Range | -70 dBm to +10 dBm |
| Level Accuracy | ±0.5 dB |
| Sweep Time | 0.5 s to 200 s |
| Display | Color CRT Display |
| Interface | GP-IB (IEEE 488) |
| Power Supply | 100/120/220/240 VAC, 50/60 Hz |
| Model | MS9020B |
|---|

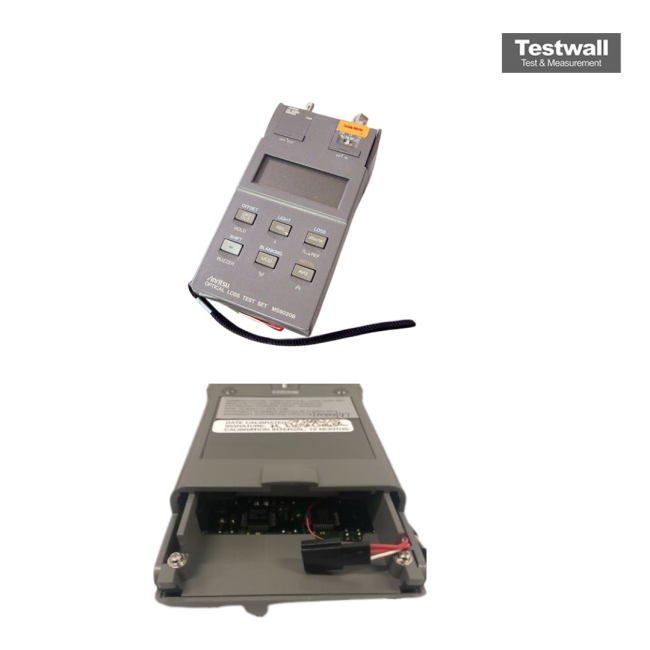

The Anritsu MS9020B is a versatile optical measuring instrument featuring an LD/LED light source and an optical power meter. It is designed for precise optical testing, including return loss measurement. The system integrates the MS0902A LED source (1.3µm, ST connection) and the MA9723A Optical Sensor (0.75–1.8µm, ST connection), ensuring broad wavelength coverage and reliable results.
This optical loss test set is ideal for fiber optic network installation, maintenance, and troubleshooting, providing accurate and user-friendly operation in diverse environments.
Testwall can supply the used Anritsu MS9020B Optical Loss Test Set, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS9020B Optical Loss Test Set.
