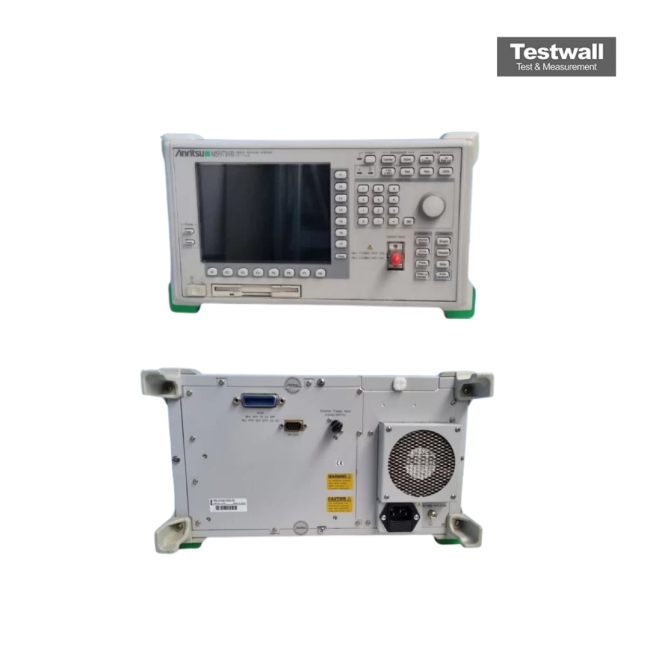

Anritsu MS9710B Optical Spectrum Analyser 600-1750nm
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Resolution | 0.05 nm |
| Wavelength Accuracy | ±0.1 nm |
| Dynamic Range | 60 dB |
| Sensitivity | -90 dBm (Typical) |
| Level Measurement Range | -90 dBm to +20 dBm |
| Level Accuracy | ±0.4 dB |
| Sweep Time | 0.1 s to 999 s |
| Display | 8.4-inch Color TFT LCD |
| Interface | GP-IB, RS-232C |
| Model | MS9710B |
|---|
The Anritsu MS9710B Optical Spectrum Analyzer offers outstanding wavelength accuracy, waveform clarity, and wide coverage from 600 to 1750nm. With a diffraction grating design, it ensures precise resolution bandwidth, superior signal-to-noise averaging, high reception sensitivity, and accurate power level measurements. Enhanced performance in the L-Band region between 1570nm and 1620nm is available as an optional upgrade.
Designed with advanced features such as a tracking function with tunable laser source, built-in attenuator for high power optical inputs, VGA output, and optional built-in light source with reference wavelength, the MS9710B is ideal for demanding optical spectrum analysis applications.
Testwall can supply the used Anritsu MS9710B Optical Spectrum Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS9710B Optical Spectrum Analyzer.
