Rohde & Schwarz FSVR30
| Attribute | Value |
|---|---|
| Frequency Range | 10 Hz to 30 GHz |
| Display Average Noise Level (DANL) | -155 dBm (typical, at 1 GHz, preamp on) |
| Phase Noise | -110 dBc/Hz (at 1 GHz carrier, 10 kHz offset) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Maximum Input Power (RF) | +30 dBm (1 W) |
| Dynamic Range | Up to 110 dB |
| Real-Time Bandwidth | Up to 40 MHz |
| Spurious-Free Dynamic Range (SFDR) | 78 dBc (typical) |
| Input Impedance | 50 Ohm |
| Power Supply | 100 V to 240 V AC, 50/60 Hz |
| Model | FSVR30 |
|---|

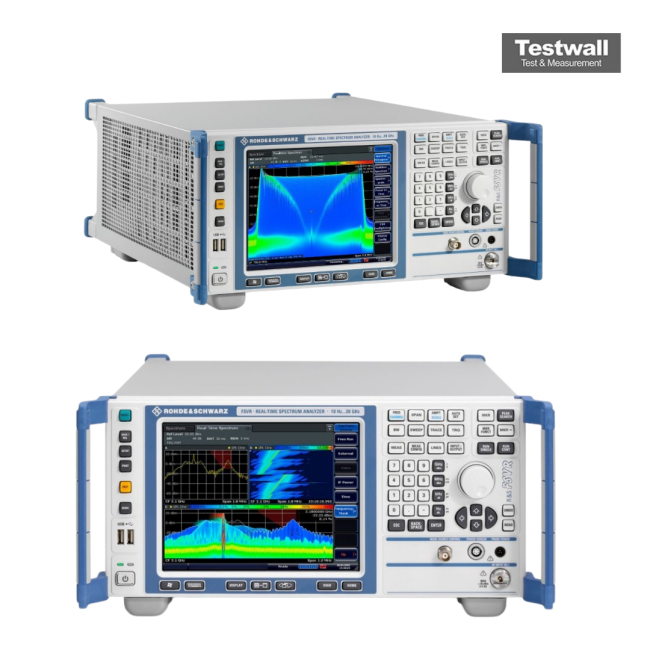

The Rohde & Schwarz FSVR30 Real-Time Spectrum Analyzer covers 10 Hz to 30 GHz with a 40 MHz real-time bandwidth. It features 128 Msps A/D conversion, 1 Hz to 10 MHz RBW, and a DANL of –152 dBm/Hz at 1 GHz. It supports FFT, channel filters, and high-speed trace rates, all via a vivid 8.4" TFT touchscreen.
Ideal for EMI diagnostics, radar, wireless comms, and spectrum monitoring, the FSVR30 supports real-time I/Q streaming, modulation analysis, and compliance standards like LTE, GSM, and WLAN.
Testwall can supply the used Rohde & Schwarz FSVR30, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Rohde & Schwarz FSVR30.
