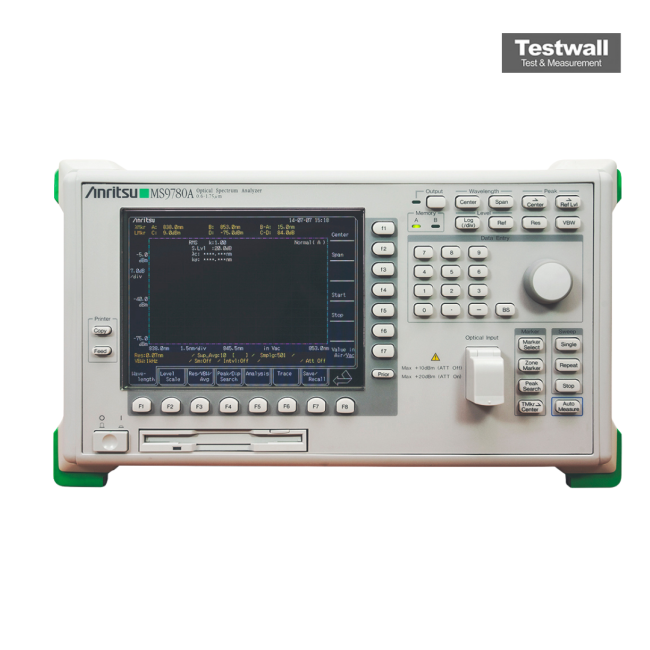

Anritsu MS9780A
| Attribute | Value |
|---|---|
| Wavelength Range | 600 nm to 1750 nm |
| Wavelength Resolution | 0.01 nm |
| Wavelength Accuracy | ±0.05 nm |
| Dynamic Range | 78 dB |
| Level Measurement Range | -90 dBm to +20 dBm |
| Level Accuracy | ±0.4 dB |
| Sweep Speed | 0.5 nm/s to 100 nm/s |
| Span Range | 0.5 nm to 1200 nm |
| Display | 10.4-inch color TFT LCD |
| Interface | GP-IB, RS-232C, Ethernet |
Anritsu MS9780A Options:
- MS9780A - 02 - White light source
- MS9780A - 03 - Wavelength reference & SLD light source
- MS9780A - 04 - SLD light source
- MS9780A - 05 - Reference wavelength light source
- MS9780A - 06 - Monitor output (VGA output)
- MS9780A - 27 - E2000 (Diamond) connector
- MS9780A - 37 - FC connector
- MS9780A - 38 - ST connector
- MS9780A - 39 - DIN connector
- MS9780A - 40 - SC connector
- MS9780A - 43 - HMS-10/A (Diamond) connector
| Model | MS9780A |
|---|
The Anritsu MS9780A is a diffraction-grating spectrum analyzer designed for optical spectra in the 600 to 1750 nm band. It features a redesigned input section supporting 50/62.5 μm fiber cores, enabling precise measurements of LDs, LEDs, and passive optical components. With -70 dB dynamic range, -90 dBm sensitivity, and 0.07 nm minimum resolution, it ensures high accuracy and reliable optical performance across WDM applications.
The MS9780A supports LD/LED spectral analysis, transmission measurements of isolators, NF/Gain analysis for fiber amplifiers, and optical pulse evaluation. Its stability and diffraction-grating design meet stringent WDM measurement needs, especially around the 1.55 μm band.
Testwall can supply the used Anritsu MS9780A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS9780A.
