Anritsu MT8212E
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 4 GHz |
| Measurement Functions | Cable and Antenna Analyzer, Spectrum Analyzer, Power Meter, Interference Analyzer |
| Dynamic Range | Up to 90 dB |
| Display | 7-inch color TFT LCD touchscreen, 800 x 480 resolution |
| Battery Life | Approximately 3 hours with internal rechargeable Li-Ion battery |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Weight | Approximately 3.6 kg (7.9 lbs) including battery |
| Connector Type | N-Type female RF connector |
| Data Storage | Internal flash memory and USB port for external storage |
| Power Input | AC adapter 100–240 VAC, 50/60 Hz or 12 VDC vehicle adapter |
| Model | MT8212E |
|---|

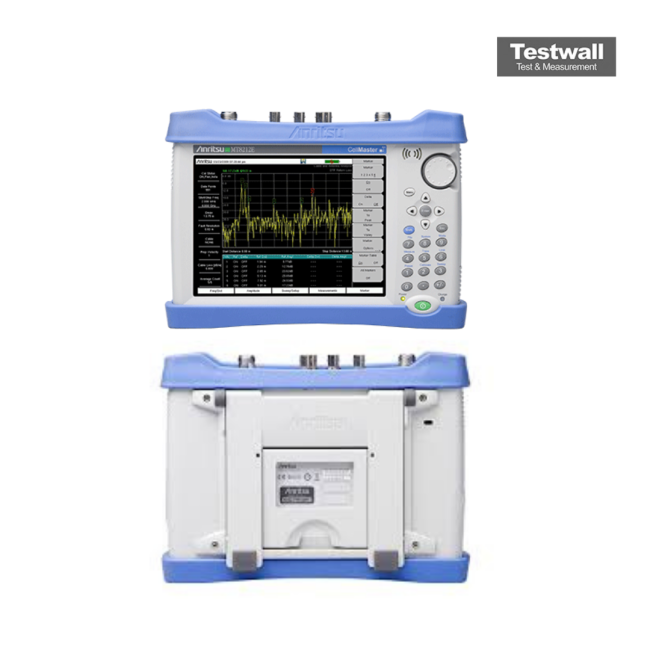

The Anritsu MT8212E Cell Master is a multi-function handheld analyzer that integrates base station transmitter testing, spectrum analysis, cable and antenna diagnostics, and power measurement into one rugged unit. It covers frequencies from 2 MHz to 4 GHz, supporting 2G/3G/4G, WiMAX, ISDB‑T, and DVB‑T/H broadcast standards. Optional features include GPS, interference analysis, bias‑tee, and two-port transmission measurement for versatile RF workflows.
With its lightweight touchscreen design, USB connectivity, trace logging, and cloud integration, the Anritsu MT8212E is optimized for reliable field deployment and comprehensive on-site RF commissioning tasks.
Testwall can supply the used Anritsu MT8212E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8212E.
