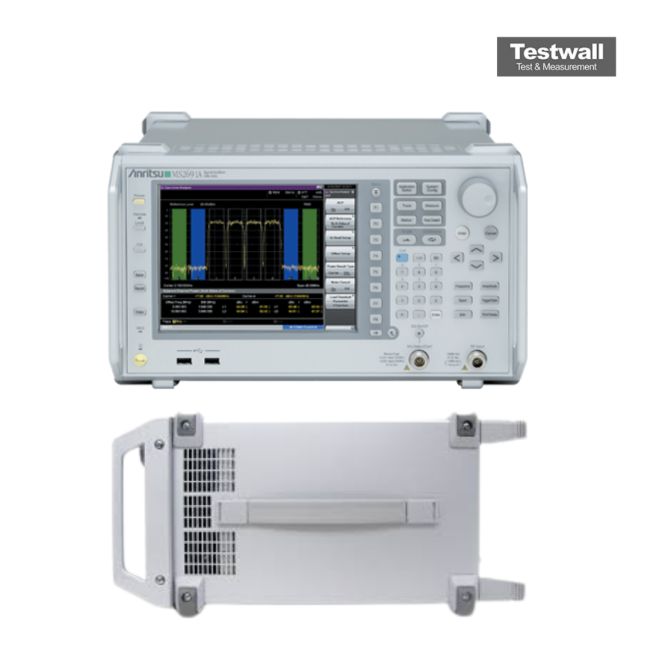

Anritsu MS2691A
| Attribute | Value |
|---|---|
| Frequency Range | 50 Hz to 6 GHz |
| Dynamic Range | Up to 153 dB |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Displayed Average Noise Level (DANL) | -165 dBm/Hz (typical) at 1 GHz with preamplifier |
| Resolution Bandwidth (RBW) | 1 Hz to 10 MHz |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Amplitude Accuracy | ±0.3 dB (typical) |
| Display | 10.4-inch color TFT LCD touchscreen |
| Interface / Connectivity | USB, LAN (Ethernet), GPIB (optional) |
| Model | MS2691A |
|---|
The Anritsu MS2691A Signal Analyzer offers a wide frequency range from 50 Hz to 13.5 GHz with an analysis bandwidth of 31.25 MHz, expandable to 62.5 MHz/125 MHz. It supports swept spectrum and FFT signal analysis, precision digitizer functionality, and optional signal generation. With a level accuracy of ±0.5 dB across a 6 GHz span and modular expandability, it delivers unmatched signal analysis performance for advanced communication systems.
Engineers rely on the Anritsu MS2691A Signal Analyzer for measuring power, distortion, modulation quality, and phase noise. Its batch capture feature ensures faster analysis, while the microwave preselector bypass (6 GHz to 26.5 GHz) enhances flexibility for broadband testing applications.
Testwall can supply the used Anritsu MS2691A Signal Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MS2691A Signal Analyzer.
