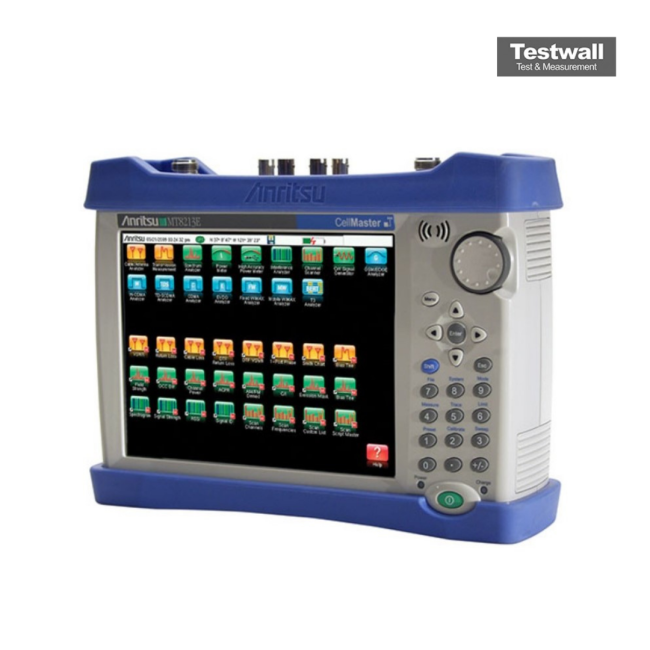

Anritsu MT8213E
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 4 GHz |
| Technology Supported | LTE, WCDMA, GSM, CDMA, TD-SCDMA, WiMAX |
| Display Type | 7-inch color touch screen LCD |
| Display Resolution | 800 x 480 pixels |
| Battery Life | Approximately 3.5 hours of continuous operation |
| Weight | Approximately 3.0 kg (6.6 lbs) including battery |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Connector Type | N-type female RF connector |
| Dynamic Range | Greater than 95 dB typical |
Anritsu MT8213E Options:
- MT8213E - 0021 - 2-Port Transmission Measurement
- MT8213E - 0010 - Bias-Tee
- MT8213E - 0031 - GPS Receiver (requires Antenna)
- MT8213E - 0019 - High-Accuracy Power Meter (requires External Power Sensor)
- MT8213E - 0025 - Interference Analyzer (Option 31 recommended)
- MT8213E - 0027 - Channel Scanner
- MT8213E - 0431 - Coverage Mapping (requires Option 31)
- MT8213E - 0444 - EMF Measurements (requires Anritsu Isotropic Antenna)
- MT8213E - 0090 - Gated Sweep
- MT8213E - 0028 - C/W Signal Generator (requires CW Signal Generator Kit, P/N 69793)
- MT8213E - 0751 - CPRI RF Measurements (cannot be ordered with Option 57, or 79)
- MT8213E - 0880 - GSM/GPRS/EDGE Measurements (requires Option 9)
- MT8213E - 0881 - W-CDMA/HSPA+ Measurements (requires Option 9; Option 31 recommended)
- MT8213E - 0882 - TD-SCDMA/HSPA+ Measurements (requires Option 9; requires Option 31 for full functionality)
- MT8213E - 0883 - LTE/LTE-A FDD/TDD Measurements (requires Option 9; requires Option 31 for full functionality)
- MT8213E - 0884 - CDMA/EV-DO Measurements (requires Option 9; requires Option 31 for full functionality)
- MT8213E - 0885 - WiMAX Fixed/Mobile Measurements (requires Option 9; requires Option 31 for full functionality)
- MT8213E - 0030 - ISDB-T Digital Video Measurements
- MT8213E - 0032 - ISDB-T SFN Measurements
- MT8213E - 0079 - ISDB-T BER Measurements (requires Option 30; cannot be ordered with Option 751)
- MT8213E - 0064 - DVB-T/H Digital Video Measurements
- MT8213E - 0078 - DVB-T/H SFN Measurements
- MT8213E - 0057 - DVB-T/H BER Measurements (requires Option 64; cannot be ordered with Option 751)
- MT8213E - 0413 - Ethernet Connectivity
- MT8213E - 0098 - Standard Calibration (ANSI 2540-1-1994)
- MT8213E - 0099 - Premium Calibration (ANSI 2540-1-1994 plus test data)
| Model | MT8213E |
|---|
The Anritsu MT8213E Cell Master Base Station Analyzer combines 30 analyzers in one compact handheld device, covering frequencies from 2 MHz to 6 GHz. It supports cable and antenna analysis, spectrum analysis, power measurements, interference hunting, and digital broadcast field testing for ISDB-T and DVB-T/H. Equipped with GPS mapping, touch screen interface, and USB connectivity, it ensures advanced measurement accuracy for 2G, 3G, 4G, LTE-A, WiMAX, and more.
Its integrated capabilities make it ideal for installation, commissioning, troubleshooting, and maintenance of base stations. PIM Hunting mode with MW82119B support and easyTest Tools enhance accuracy, repeatability, and efficiency in field operations.
Testwall can supply the used Anritsu MT8213E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8213E.
