Anritsu MT8860C
| Attribute | Value |
|---|---|
| Frequency Range | 2.4 GHz and 5 GHz (802.11a/b/g/n/ac) |
| Wireless Standards Supported | IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
| Transmitter Power Measurement Range | -10 dBm to +30 dBm |
| Receiver Sensitivity Measurement | Minimum sensitivity down to -100 dBm |
| RF Connector Type | N-Type Female (50 Ohm) |
| Channel Bandwidth Support | 20 MHz, 40 MHz, and 80 MHz |
| MIMO Support | Up to 4x4 MIMO (802.11n/ac) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Interface/Connectivity | LAN (Ethernet), USB, GPIB |
| Operating Temperature Range | 0°C to +40°C (32°F to 104°F) |
Anritsu MT8860C Options:
- MT8860C - 001 - Rack mount kit (CANNOT be ordered with option 2)
- MT8860C - 002 - Front panel handles (CANNOT be ordered with option 1)
- MT8860C - 014 - 802.11a transmitter and receiver measurements
- MT8860C - 114 - Retrofit 802.11a transmitter and receiver measurements
- MT8860C - 017 - 802.11n transmitter and receiver measurements (Requires MN8861A Receiver Accessory for 802.11n receiver measurement support, sold separately)
- MT8860C - 117 - Retrofit, 802.11n transmitter and receiver measurements (Requires MN8861A Receiver Accessory for 802.11n receiver measurement support, sold separately)
- MT8860C - 098 - Standard calibration to ISO 17025 and ANSI/NCSLI Z540-1 (Certificate of calibration only)
- MT8860C - 099 - Premium calibration to ISO 17025 and ANSI/NCSLI Z540-1 (Certificate of calibration with test report and uncertainty data included)
| Model | MT8860C |
|---|

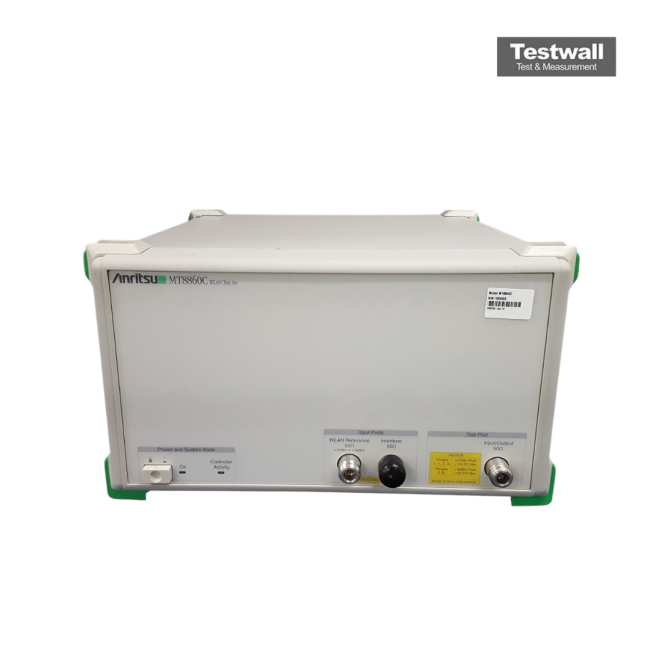

The Anritsu MT8860C is an integrated one‑box test set for 802.11 WLAN devices, delivering high‑speed measurements for production test and design proving. It supports two operation modes: Network and Direct. In Network mode, it uses standard WLAN signaling to exercise and measure DUT transmitters and receivers. In Direct mode, the MT8860C generates and transmits WLAN packets for receiver testing and evaluates DUT transmitters with its built‑in transmitter analyzer.
In Direct mode the DUT is controlled by the silicon supplier’s test‑mode utility. Control and visualization use the LANLook PC software, providing a familiar Windows‑based interface for instrument configuration and clear numerical and graphical result displays via a GPIB connection.
Testwall can supply the used Anritsu MT8860C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8860C.
