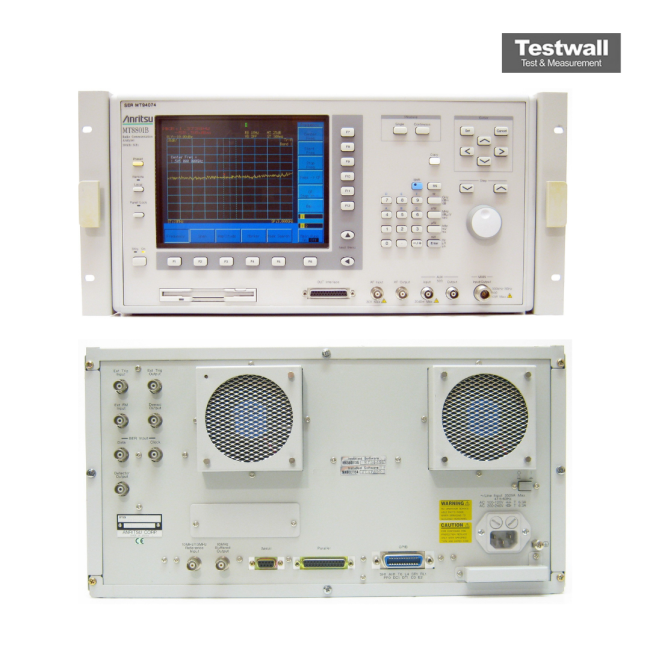

Anritsu MT8801B
| Attribute | Value |
|---|---|
| Frequency Range | 800 MHz to 1000 MHz / 1.4 GHz to 2.0 GHz |
| Supported Standards | GSM, GPRS, EGPRS (EDGE), W-CDMA, cdmaOne, CDMA2000 |
| Measurement Functions | TX power, frequency error, phase error, modulation accuracy, spectrum analysis, BER, FER |
| RF Output Power Range | -110 dBm to -10 dBm |
| Power Measurement Range | -60 dBm to +43 dBm |
| Spurious Response | -70 dBc or less |
| Interface | GPIB (IEEE 488.2), RS-232C |
| Display | 8.4-inch color TFT LCD |
| Power Supply | AC 100 V to 240 V, 50/60 Hz |
| Dimensions / Weight | 426 mm (W) x 221 mm (H) x 451 mm (D) / Approximately 18 kg |
Anritsu MT8801B Options:
- MT8801B - 01 - Analog measurement
- MT8801B - 02 - SG local
- MT8801B - 07 - Spectrum analyzer
- MT8801B - MX880113A - IS-136A Measurement Software (requires installation of Options 01 and 02)
- MT8801B - MX880115A - GSM Measurement Software (requires installation of Option 02)
- MT8801B - MX880116A - PDC Measurement Software with Call Processing (requires installation of Option 02)
- MT8801B - MX880117A - PHS Measurement Software with Call Processing (requires installation of Option 02)
- MT8801B - MX880131A - PDC Measurement Software
- MT8801B - MX880132A - PHS Measurement Software
| Model | MT8801B |
|---|
The Anritsu MT8801B Radio Communication Analyzer supports testing for multiple wireless systems including IS-95, CDMA2000 1X (all 10 band classes), AMPS, GSM, GPRS, HSCSD, IS-136, PDC, and PHS within a wide frequency range of 300 kHz to 3 GHz. It features an optional spectrum analyzer from 10 MHz to 3 GHz, built-in thermal power meter, and GPIB/RS-232C interfaces for seamless integration in automated test setups.
With external CRCA and protocol monitoring software, the MT8801B provides repeatable, controlled test sequences and detailed traffic analysis. The Wireless Internet Protocol option enables efficient testing of CDMA2000 1X Internet devices in their native over-the-air environments.
Testwall can supply the used Anritsu MT8801B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8801B.
