Anritsu MT8803G
| Attribute | Value |
|---|---|
| Supported Standards | GSM/GPRS/EGPRS (EDGE), W-CDMA/HSPA, TD-SCDMA, LTE |
| Frequency Range | 700 MHz to 2.7 GHz |
| RF Output Power Range | -120 dBm to -20 dBm |
| Measurement Functions | Call processing, RF parametric measurements, protocol testing, and signaling analysis |
| Interface | GPIB, USB, LAN (Ethernet) |
| Display | 10.4-inch color TFT LCD touchscreen |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Power Supply | AC 100 V to 240 V, 50/60 Hz |
| Dimensions (W x H x D) | 426 mm x 221 mm x 451 mm (16.8 in x 8.7 in x 17.8 in) |
| Weight | Approximately 23 kg (50.7 lbs) |
| Model | MT8803G |
|---|

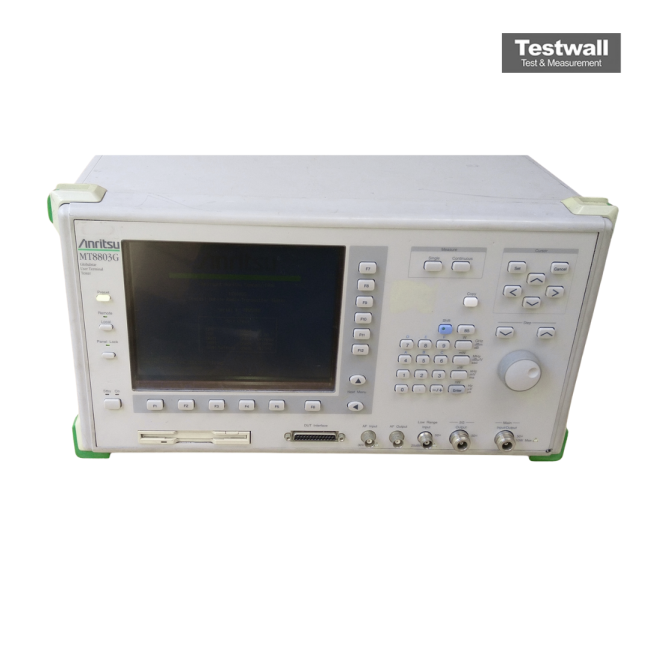

The Anritsu MT8803G is a compact communication analyzer engineered for precise testing of Globalstar satellite user terminals. It simulates RF communication links and measures terminal responses by replicating standard handset functionality in a Globalstar network environment. With dimensions of approximately 105 × 136 × 19 mm and a lightweight 2.2 kg build, it delivers high portability for field testing applications.
Optimized for satellite voice and data terminal validation, the MT8803G supports bandwidth accuracy, modulation compliance, and reliable RF transmit/receive performance. It is ideally suited for manufacturing, repair verification, and on‑site validation tasks.
Testwall can supply the used Anritsu MT8803G Communication Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8803G Communication Analyzer.
