Anritsu

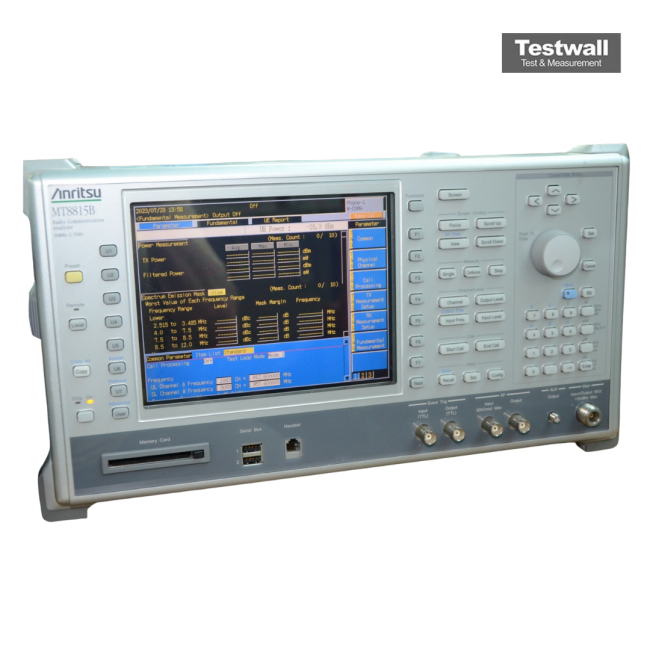

Anritsu MT8815B
Radio Communication Analyser 30MHz - 2.7GHz
100 kHz to 3 GHz Frequency Range
W-CDMA/HSPA, GSM/GPRS/EDGE, CDMA2000, TD-SCDMA, LTE Supported Air Interface Standards
-130 dBm to -10 dBm RF Signal Generator Output Power Range
-50 dBm to +40 dBm RF Signal Analyzer Input Power Range
2 (Main and Sub) Number of RF Ports
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 3 GHz |
| Supported Air Interface Standards | W-CDMA/HSPA, GSM/GPRS/EDGE, CDMA2000, TD-SCDMA, LTE |
| RF Signal Generator Output Power Range | -130 dBm to -10 dBm |
| RF Signal Analyzer Input Power Range | -50 dBm to +40 dBm |
| Number of RF Ports | 2 (Main and Sub) |
| Spurious Response | < -60 dBc |
| Frequency Reference Accuracy | ±0.1 ppm (internal reference) |
| Interface Connectivity | GPIB, USB, LAN (Ethernet) |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Operating Temperature Range | 0°C to +50°C |
Anritsu MT8815B Options:
- MT8815B - 001 - W-CDMA Measurement Hardware
- MT8815B - 002 - TDMA Measurement Hardware
- MT8815B - 003 - CDMA2000 Measurement Hardware
- MT8815B - 004 - 1xEV-DO Measurement Hardware
- MT8815B - 011 - Audio Board
- MT8815B - 031 - W-CDMA Measurement Hardware Lite
- MT8815B - 032 - TDMA Measurement Hardware Lite
- MT8820B - 043 - CDMA2000 Time Offset CAL For GPS SG (requires MT8815B-003 and MX882002C)
- MT8815B - 101 - W-CDMA Measurement Hardware retrofit
- MT8815B - 102 - TDMA Measurement Hardware retrofit
- MT8815B - 103 - CDMA2000 Measurement Hardware retrofit
- MT8815B - 104 - 1xEV-DO Measurement Hardware retrofit
- MT8815B - 111 - Audio Board retrofit
- MT8815B - 131 - W-CDMA Measurement Hardware Lite Retrofit
- MT8815B - 132 - TDMA Measurement Hardware Lite Retrofit
- MT8820B - 143 - CDMA2000 Time Offset CAL For GPS SG Retrofit (requires MT8815B-003 and MX882002C)
- MX882000C - (no suffix) - W-CDMA Measurement Software (requires MT8815B-001 and MX88205xC)
- MX882000C - 001 - W-CDMA Voice Codec (requires MT8815B-011 and MX882000C)
- MX882000C - 011 - HSDPA Measurement Software (requires MT8815B-001, MX882000C and MX882050C)
- MX882000C - 012 - HSDPA H-Set 6 Throughput Test (requires MT8815B-001, MX882000C, MX882000C-011 and MX882050C)
- MX882000C - 021 - HSUPA Measurement Software (requires MT8815B-001, MX882000C, MX882000C-011 and MX882050C)
- MX882001C - (no suffix) - GSM Measurement Software (requires MT8815B-002)
- MX882001C - 001 - GSM Voice Codec (requires MT8815B-011 and MX882001C)
- MX882001C - 002 - GSM External Packet Data (requires MX882001C)
- MX882001C - 011 - EGPRS Measurement Software (requires MX882001C)
- MX882002C - (no suffix) - CDMA2000 Measurement Software (requires MT8815B-003)
- MX882002C - 002 - CDMA2000 External Packet Data (requires MX882002C)
- MX882003C - (no suffix) - 1xEV-DO Measurement Software (requires MT8815B-003, MT8815B-004 and MX882002C)
- MX882003C - 002 - 1xEV-DO External Packet Data (requires MX882003C)
- MX882005C - (no suffix) - PHS Measurement Software (requires MT8815B-002)
- MX882005C - 011 - Advanced PHS Measurement Software (requires MX882005C)
- MX882030C - (no suffix) - W-CDMA Measurement Software Lite (requires MT8815B-031)
- MX882030C - 001 - W-CDMA Voice Codec (requires MT8815B-011 and MX882030C)
- MX882030C - 009 - W-CDMA Band IX (requires MX882030C-050)
- MX882030C - 011 - HSDPA Measurement Software (requires MX882030C)
- MX882030C - 040 - W-CDMA High-speed Adjustment (requires MX882030C)
- MX882030C - 050 - W-CDMA Call Processing Software (requires MX882030C)
- MX882031C - (no suffix) - GSM Measurement Software Lite (requires MT8815B-032)
- MX882031C - 001 - GSM Voice Codec (requires MT8815B-011 and MX882031C)
- MX882031C - 011 - EGPRS Measurement Software (requires MX882031C)
- MX882031C - 040 - EGPRS Predistortion Adjustment (requires MX882031C)
- MX882031C - 050 - GSM Call Processing Software (requires MX882031C)
- MX882050C - (no suffix) - W-CDMA Call Processing Software (requires MX882000C)
- MX882050C - 002 - W-CDMA External Packet Data (requires MX882050C)
- MX882050C - 003 - W-CDMA Video Phone Test (requires MX882050C)
- MX882050C - 009 - W-CDMA Band IX (requires MX882050C)
- MX882050C - 011 - HSDPA External Packet Data (requires MX882000C-001)
- MX882070C - (no suffix) - W-CDMA Ciphering Software (requires MX882050C)
- MX882051C - (no suffix) - W-CDMA Call Processing Software (requires MX882000C)
- MX882051C - 002 - W-CDMA External Packet Data (requires MX882051C)
- MX882051C - 003 - W-CDMA Video Phone Test (requires MX882051C)
- MX882071C - (no suffix) - W-CDMA Ciphering Software (requires MX882051C)
- MT8815B - ES210 - Extended Two Year Warranty Service
- MT8815B - ES310 - Extended Three Year Warranty Service
- MT8815B - ES510 - Extended Five Year Warranty Service
| Model | MT8815B |
|---|
The Anritsu MT8815B Radio Communication Analyzer is a versatile multi-system test platform supporting W-CDMA/HSPA, GSM/GPRS/EGPRS, cdma2000 1x/1xEV-DO, and TD-SCDMA with one unit. It operates across 30 MHz to 2.7 GHz, enabling precise evaluation of transmission and reception parameters for mobile devices. Advanced DSP and parallel-measurement technology significantly reduce manufacturing and inspection time while offering configurable measurement flexibility.
This analyzer measures critical Tx and Rx characteristics, including frequency, modulation accuracy, transmit power, spectrum emission mask, adjacent channel leakage power, occupied bandwidth, and BER. With one-touch operation, it ensures efficient terminal manufacturing and detailed diagnostics.
Testwall can supply the used Anritsu MT8815B Radio Communication Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8815B Radio Communication Analyzer.
