Anritsu MT8820C
| Attribute | Value |
|---|---|
| Frequency Range | 30 MHz to 2.7 GHz |
| Supported Standards | W-CDMA/HSPA, GSM/GPRS/EGPRS, TD-SCDMA, CDMA2000, 1xEV-DO, LTE (optional) |
| RF Output Power Range | -130 dBm to -10 dBm |
| RF Input Power Range | -50 dBm to +35 dBm |
| Frequency Accuracy | ±0.01 ppm (with built-in reference oscillator) |
| Output Level Accuracy | ±1.0 dB |
| Measurement Functions | TX power, modulation analysis, spectrum analysis, BER/BLER, call processing |
| Interface Ports | GPIB, USB, Ethernet (LAN) |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 426 mm x 221 mm x 451 mm (approximately 16.8 x 8.7 x 17.8 inches) |
| Model | MT8820C |
|---|

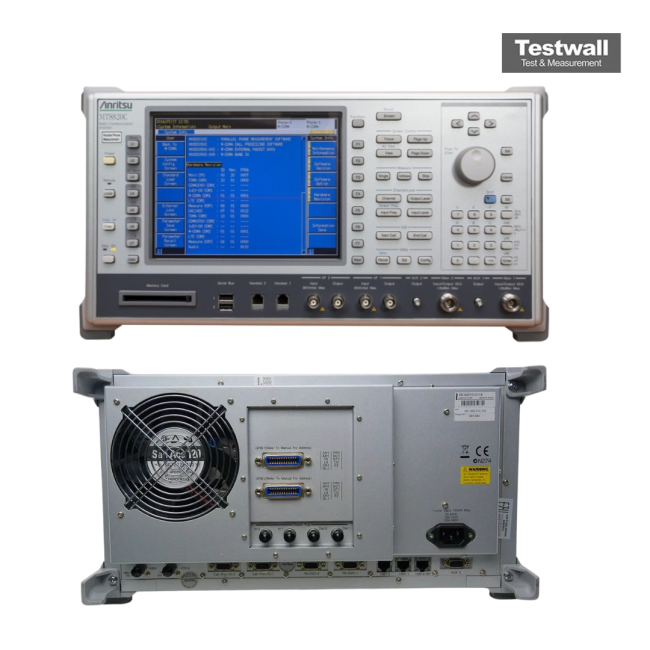

The Anritsu MT8820C is a versatile all-in-one Radio Communication Analyzer, designed for LTE, 3G, and 2G wireless device testing. Supporting a frequency range from 30 MHz to 2.7 GHz, it enables signaling, TX parametric, and RX parametric tests. It also provides market-leading TD-SCDMA capabilities with HSDPA and HSUPA support, and features Parallelphone™ Measurement for 2X line throughput. The MT8820C ensures quick migration from MT8815B/MT8820B while reducing cost and space.
Engineered for manufacturing and R&D environments, the MT8820C supports no-call calibration, functional testing, and ensures reliable performance across all wireless device testing applications.
Testwall can supply the used Anritsu MT8820C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8820C.
