Anritsu

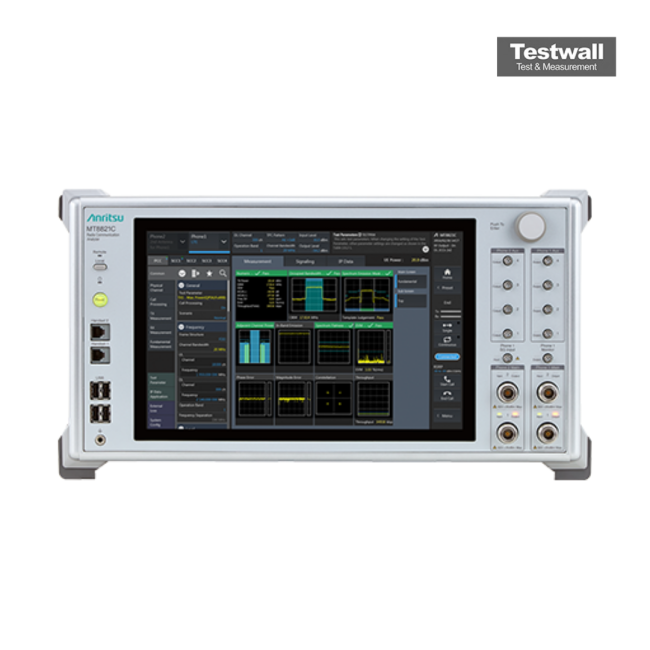

Anritsu MT8821C
Radio Communication Analyser
30 MHz to 2.7 GHz (expandable to 6 GHz) Frequency Range
LTE, LTE-Advanced, W-CDMA/HSPA, GSM/GPRS/EDGE, CDMA2000, TD-SCDMA, LTE TDD Supported Radio Access Technologies
-130 dBm to -10 dBm RF Output Power Range
-50 dBm to +35 dBm RF Input Power Range
Up to LTE Category 11 (with options), supporting carrier aggregation LTE Category Support
| Attribute | Value |
|---|---|
| Frequency Range | 30 MHz to 2.7 GHz (expandable to 6 GHz) |
| Supported Radio Access Technologies | LTE, LTE-Advanced, W-CDMA/HSPA, GSM/GPRS/EDGE, CDMA2000, TD-SCDMA, LTE TDD |
| RF Output Power Range | -130 dBm to -10 dBm |
| RF Input Power Range | -50 dBm to +35 dBm |
| LTE Category Support | Up to LTE Category 11 (with options), supporting carrier aggregation |
| Carrier Aggregation | Up to 5-component carrier aggregation (5CA) for LTE-Advanced testing |
| Measurement Functions | RF TX measurements, sensitivity testing, call processing, protocol testing, application throughput testing |
| Interface Ports | RF ports, GPIB, USB, LAN (Ethernet), external reference input/output |
| Operating Temperature | 0°C to +50°C |
| Power Supply | 100–240 VAC, 50/60 Hz, approximately 500 VA maximum |
Anritsu MT8821C Options:
- MT8821C - 001 - W-CDMA Measurement Hardware
- MT8821C - 002 - TDMA Measurement Hardware
- MT8821C - 003 - CDMA2000 Measurement Hardware
- MT8821C - 005 - 1xEV-DO Measurement Hardware (Requires MT8821C-003)
- MT8821C - 007 - TD-SCDMA Measurement Hardware (Requires MT8821C-001)
- MT8821C - 008 - LTE Measurement Hardware
- MT8821C - 011 - Audio Board
- MT8821C - 012 - Parallel Phone Measurement Hardware
- MT8821C - 019 - Extended RF 3.8 GHz to 6 GHz
- MT8821C - 025 - 2nd RF for Phone1
- MT8821C - 026 - 3rd RF for Phone1 (Requires MT8821C-025)
- MT8821C - 027 - 4th RF for Phone1 (Requires MT8821C-026)
- MT8821C - 028 - 2nd RF for Phone2 (Requires MT8821C-012)
- MT8821C - 029 - 3rd RF for Phone2 (Requires MT8821C-028)
- MT8821C - 030 - 4th RF for Phone2 (Requires MT8821C-029)
- MT8821C - 043 - CDMA2000 Time Offset CAL for GPS SG (Requires MT8821C-003 and MX882102C)
- MX882100C - W-CDMA Measurement Software (Requires MT8821C-001)
- MX882100C - 001 - W-CDMA Voice Codec (Requires MT8821C-011 and MX882100C)
- MX882100C - 002 - W-CDMA External Packet Data (Requires MX882100C)
- MX882100C - 003 - W-CDMA Video Phone Test (Requires MX882100C)
- MX882100C - 005 - W-CDMA A-GPS (Requires MX882100C)
- MX882100C - 019 - W-CDMA HSPA Measurement Software (Requires MX882100C)
- MX882100C - 032 - DC-HSDPA Measurement Software (Requires MT8821C-001 (2 sets), MT8821C-012, MX882100C and MX882100C-019)
- MX882100C - 033 - DC-HSUPA Measurement Software (Requires MX882100C-032)
- MX882100C - 034 - 4C-HSDPA Measurement Software (Requires MX882100C-032)
- MX882170C - W-CDMA Ciphering Software (Requires MX882100C)
- MX882101C - GSM Measurement Software (Requires MT8821C-002)
- MX882101C - 001 - GSM Voice Codec (Requires MT8821C-011 and MX882101C)
- MX882101C - 002 - GSM External Packet Data (Requires MX882101C)
- MX882101C - 005 - GSM A-GPS (Requires MX882101C)
- MX882101C - 011 - EGPRS Measurement Software (Requires MX882101C)
- MX882102C - CDMA2000 Measurement Software (Requires MT8821C-003)
- MX882102C - 001 - CDMA2000 Voice Codec (Requires MT8821C-011 and MX882102C)
- MX882102C - 002 - CDMA2000 External Packet Data (Requires MX882102C)
- MX882106C - 1xEV-DO Measurement Software (Requires MT8821C-005 and MX882102C)
- MX882106C - 002 - 1xEV-DO External Packet Data (Requires MX882106C)
- MX882107C - TD-SCDMA Measurement Software (Requires MT8821C-007)
- MX882107C - 001 - TD-SCDMA Voice Codec (Requires MT8821C-011 and MX882107C)
- MX882107C - 002 - TD-SCDMA External Packet Data (Requires MX882107C)
- MX882107C - 003 - TD-SCDMA Video Phone Test (Requires MX882107C)
- MX882107C - 011 - TD-SCDMA HSDPA Measurement Software (Requires MX882107C)
- MX882107C - 012 - TD-SCDMA HSDPA Evolution Measurement Software (Requires MX882107C-011)
- MX882107C - 021 - TD-SCDMA HSUPA Measurement Software (Requires MX882107C-011)
- MX882112C - LTE FDD Measurement Software (Requires MT8821C-008)
- MX882112C - 006 - LTE FDD IP Data Transfer (Requires MX882112C)
- MX882112C - 011 - LTE FDD 2x2 MIMO DL (Requires MT8821C-012 and MX882112C)
- MX882112C - 012 - LTE FDD 4x4 MIMO DL (Requires MT8821C-026, MT8821C-029 and MX882112C-011)
- MX882112C - 016 - LTE FDD CS Fallback to W-CDMA/GSM (Requires MX882112C and MX882100C or MX882101C)
- MX882112C - 017 - LTE FDD CS Fallback to CDMA2000 (Requires MX882112C and MX882102C)
- MX882112C - 021 - LTE-Advanced FDD DL CA Measurement Software (Requires MT8821C-025 and MX882112C)
- MX882112C - 022 - LTE-Advanced FDD UL CA Measurement Software (Requires MX882112C-021)
- MX882112C - 026 - LTE-Advanced FDD DL CA IP Data Transfer (Requires MX882112C-006 and MX882112C-021)
- MX882112C - 031 - LTE-Advanced FDD DL CA 3CCs Measurement Software (Requires MT8821C-008 (2 sets), MT8821C-026 and MX882112C-021)
- MX882112C - 036 - LTE-Advanced FDD DL CA 3CCs IP Data Transfer (Requires MX882112C-026 and MX882112C-031)
- MX882112C - 041 - LTE-Advanced FDD DL CA 4CCs Measurement Software (Requires MT8821C-027 and MX882112C-031)
- MX882112C - 046 - LTE-Advanced FDD DL CA 4CCs IP Data Transfer (Requires MX882112C-036 and MX882112C-041)
- MX882112C - 051 - LTE-Advanced FDD DL CA 5CCs Measurement Software (Requires MT8821C-012 and MX882112C-041)
- MX882112C - 061 - LTE-Advanced FDD DL CA 6CCs Measurement Software (Requires MX882112C-051)
- MX882113C - LTE TDD Measurement Software (Requires MT8821C-008)
- MX882113C - 006 - LTE TDD IP Data Transfer (Requires MX882113C)
- MX882113C - 011 - LTE TDD 2x2 MIMO DL (Requires MT8821C-012 and MX882113C)
- MX882113C - 012 - LTE TDD 4x4 MIMO DL (Requires MT8821C-026, MT8821C-029 and MX882113C-011)
- MX882113C - 016 - LTE TDD CS Fallback to W-CDMA/GSM (Requires MX882113C and MX882100C or MX882101C)
- MX882113C - 017 - LTE TDD CS Fallback to CDMA2000 (Requires MX882113C and MX882102C)
- MX882113C - 018 - LTE TDD CS Fallback to TD-SCDMA/GSM (Requires MX882113C and MX882101C or MX882107C)
- MX882113C - 021 - LTE-Advanced TDD DL CA Measurement Software (Requires MT8821C-025 and MX882113C)
- MX882113C - 022 - LTE-Advanced TDD UL CA Measurement Software (Requires MX882113C-021)
- MX882113C - 026 - LTE-Advanced TDD DL CA IP Data Transfer (Requires MX882113C-006 and MX882113C-021)
- MX882113C - 031 - LTE-Advanced TDD DL CA 3CCs Measurement Software (Requires MT8821C-008 (2 sets), MT8821C-026 and MX882113C-021)
- MX882113C - 036 - LTE-Advanced TDD DL CA 3CCs IP Data Transfer (Requires MX882113C-026 and MX882113C-031)
- MX882113C - 041 - LTE-Advanced TDD DL CA 4CCs Measurement Software (Requires MT8821C-027 and MX882113C-031)
- MX882113C - 046 - LTE-Advanced TDD DL CA 4CCs IP Data Transfer (Requires MX882113C-036 and MX882113C-041)
- MX882113C - 051 - LTE-Advanced TDD DL CA 5CCs Measurement Software (Requires MT8821C-012 and MX882113C-041)
- MX882113C - 061 - LTE-Advanced TDD DL CA 6CCs Measurement Software (Requires MX882113C-051)
- MX882115C - W-CDMA HSPA Evolution IP Data Transfer (Requires MT8821C-008)
- MX882115C - 001 - DC-HSDPA IP Data Transfer (Requires MX882115C)
- MX882116C - LTE Category M1 Measurement Software (Requires MT8821C-008)
- MX882116C - 006 - LTE Category M1 IP Data Transfer (Requires MX882116C)
- MX882117C - NB-IoT Measurement Software (Requires MT8821C-008)
- MX882117C - 006 - NB-IoT IP Data Transfer (Requires MX882117C)
- MX882120C - Sequence Measurement Software
- MX882120C - 001 - W-CDMA Measurement Software (Requires MX882120C)
- MX882120C - 002 - GSM Measurement Software (Requires MX882120C)
- MX882120C - 003 - CDMA2000 Measurement Software (Requires MX882120C)
- MX882120C - 004 - LTE Measurement Software (Requires MX882120C)
- MX882120C - 005 - TD-SCDMA Measurement Software (Requires MX882120C)
- MX882132C - CDMA2000 Measurement Software Lite
- MX882136C - 1xEV-DO Measurement Software Lite
- MX882142C - LTE FDD Measurement Software Lite
- MX882143C - LTE TDD Measurement Software Lite
- MX882164C - LTE VoLTE Echoback (Requires MX882112C for LTE FDD, requires MX882113C for LTE TDD)
- MT8821C - ES210 - 2 Years Extended Warranty Service
- MT8821C - ES310 - 3 Years Extended Warranty Service
- MT8821C - ES510 - 5 Years Extended Warranty Service
| Model | MT8821C |
|---|
The Anritsu MT8821C is a versatile RF and protocol analyzer designed for mobile device development. It supports 2G through LTE‑Advanced, IoT formats such as NB‑IoT and LTE Cat‑M1, and provides frequency coverage from 30 MHz to 3.8 GHz with an optional extension to 6 GHz. Equipped with a high‑resolution touchscreen GUI, the unit integrates applications for EVM, throughput, and protocol verification, while enabling automated testing via GPIB or Ethernet according to 3GPP TS 36.521‑1 RF parameter standards.
Ideal for GSM, W‑CDMA/HSPA, LTE‑Advanced, and IoT evaluation, the MT8821C supports OTA testing, parallel channel measurement, and voice codec validation, making it highly suitable for both R&D and production environments.
Testwall can supply the used Anritsu MT8821C, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8821C.
