Teladyne LeCroy CP030
| Attribute | Value |
|---|---|
| Bandwidth | 30 MHz |
| Maximum Current (Peak) | 50 A |
| Maximum Current (Continuous RMS) | 30 A |
| Sensitivity | 10 mV/A, 100 mV/A |
| DC Accuracy | ±2% |
| Maximum Conductor Diameter | 10 mm |
| Output Connector | BNC |
| Power Requirement | ±15 V via probe interface or external power supply |
| Operating Temperature | 0°C to 50°C |
| Probe Type | AC/DC Current Probe |
| Model | CP0310 |
|---|

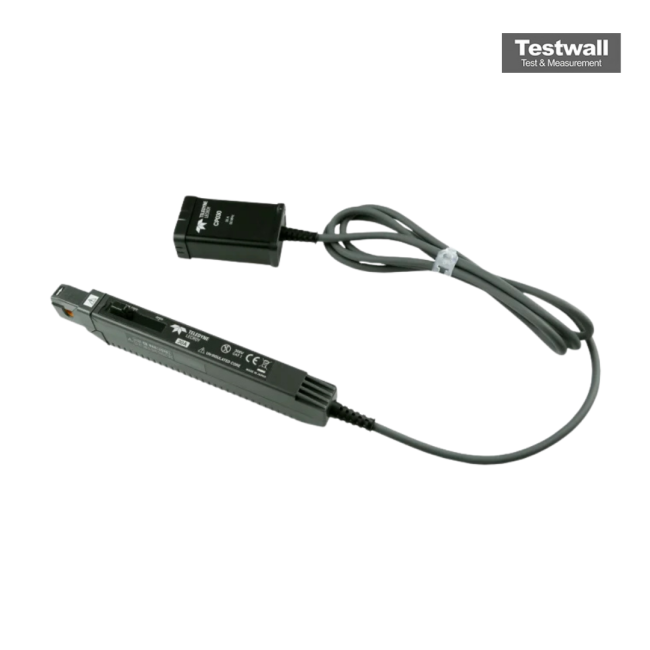

The Teledyne LeCroy CP030 is a compact AC/DC current probe designed to measure up to 30 Arms continuous and 50 A peak impulse currents with a 50 MHz bandwidth. Featuring a 5 mm jaw, it accommodates insulated conductors up to 5 mm in diameter, while delivering a sensitivity of 10 mA/div and accuracy of ±1% up to 30 A and ±2% to 50 A peak. It is ProBus-powered, eliminating the need for external adapters, and offers seamless AutoZero/Degauss functions directly via the oscilloscope interface.
Ideal for precise current measurement in confined setups, the CP030 is compatible with insulated conductors and supports applications requiring DC to 50 MHz frequency response. Its small jaw design makes it perfect for tight-space environments.
Testwall can supply the used Teledyne LeCroy CP030, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Teledyne LeCroy CP030.
