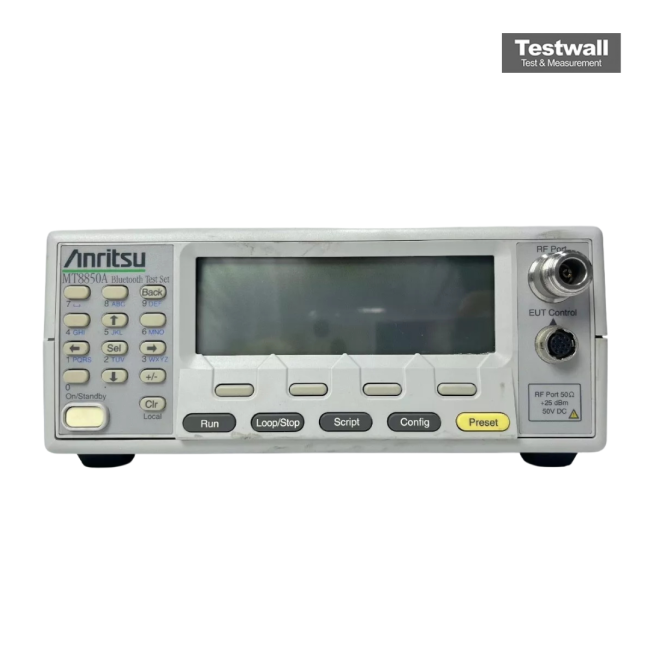

Anritsu MT8850A
| Attribute | Value |
|---|---|
| Frequency Range | 2.4 GHz (Bluetooth Band) |
| Supported Bluetooth Versions | Bluetooth 1.1, 1.2, 2.0, 2.1 with EDR (Enhanced Data Rate) |
| Modulation Analysis | GFSK, π/4-DQPSK, 8DPSK |
| Transmitter Measurements | Output power, frequency, modulation characteristics, and packet error rate (PER) |
| Receiver Measurements | Bit Error Rate (BER) and Packet Error Rate (PER) testing |
| RF Connector | N-Type female RF input/output connector |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Interface | GPIB and RS-232C for remote control and automation |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Dimensions and Weight | Approximately 426 mm (W) x 177 mm (H) x 451 mm (D); approximately 18 kg |
| Model | MT8850A |
|---|
The Anritsu MT8850A Bluetooth Test Set is engineered for rapid testing of Bluetooth wireless links, supporting both design verification and production testing. It establishes links using Bluetooth 1.1 core specifications, performing transmitter and receiver measurements according to Bluetooth RF Test requirements. With one-touch testing, users can initiate comprehensive on-channel measurements, with pass/fail analysis and detailed parameter results.
The MT8850A supports fast Bluetooth module evaluation in under 5 seconds, enhanced with EDR transmitter measurement options, user-defined scripts, and integrated BlueSuite/BlueTest software for advanced RF analysis and production automation.
Testwall can supply the used Anritsu MT8850A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8850A.
