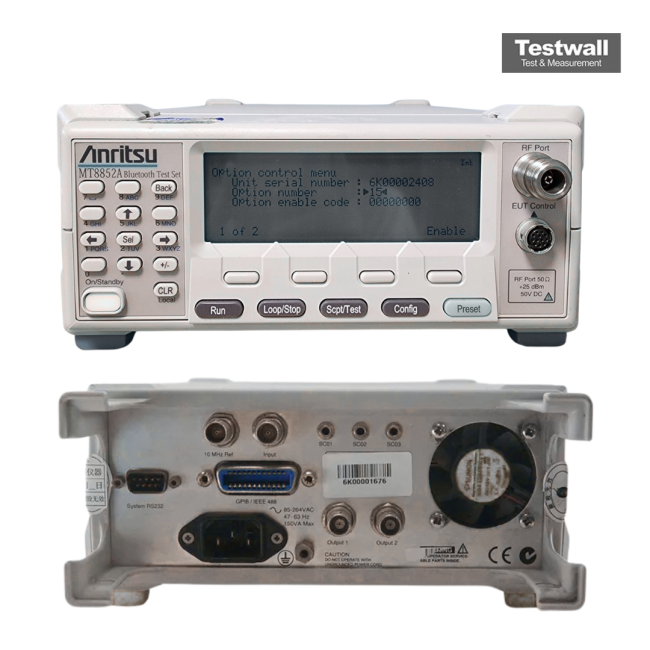

Anritsu MT8852A
| Attribute | Value |
|---|---|
| Frequency Range | 2.402 GHz to 2.480 GHz |
| Bluetooth Version Supported | Bluetooth 1.1, 1.2, 2.0 + EDR |
| Output Power Measurement Range | -70 dBm to +20 dBm |
| Frequency Measurement Accuracy | ±1 ppm |
| RF Connector Type | Type-N Female, 50 Ohm |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Interface | GPIB, RS-232, USB |
| Display | 8.4-inch Color TFT LCD |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm (16.8 x 6.97 x 17.8 in) |
| Model | MT8852A |
|---|
The Anritsu MT8852A Bluetooth Test Set With Audio offers complete radio layer measurement capabilities, building on the MT8850A with added audio testing. It supports µ-law, A-law, and CVSD codec air interfaces across three SCO audio channels, ensuring compliance with Bluetooth audio specifications. With EDR transmitter testing, analog I/O connectors, and high-speed RF performance testing, it delivers accurate and versatile results for Bluetooth-enabled devices.
Ideal for testing headsets, telephony products, audio gateways, and AV devices, the MT8852A performs Bluetooth RF and audio measurements in under 5 seconds, with support for automated testing through BlueSuite and BlueTest software.
Testwall can supply the used Anritsu MT8852A Bluetooth Test Set With Audio, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8852A Bluetooth Test Set With Audio.
