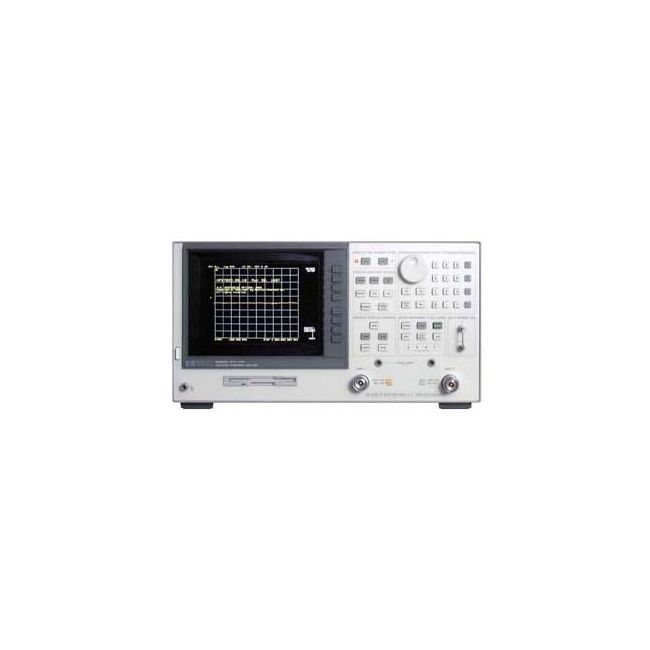

Keysight (Agilent) 8702D
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | 100 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Display | 8.4-inch color LCD display |
| Impedance | 50 Ohm and 75 Ohm |
| Number of Data Points | Up to 1601 points per sweep |
| Sweep Types | Linear frequency, log frequency, power sweep, and CW time |
| Interface/Connectivity | GPIB, RS-232, parallel port |
Keysight (Agilent) 8702D Options:
- 8702D - 006 - Extends frequency range from 3 GHz to 6 GHz
- 8702D - 002 - Internally Generated Harmonics measurement capability
- 8702D - 075 - Enhanced dynamic range (105 dB option for 300 kHz to 3 GHz ranges)
| Model | 8702D |
|---|
The Keysight (Agilent) 8702D Lightwave Component Analyzer is engineered for high-speed lightwave systems, offering precise characterization of electro-optical components. It supports modulation frequencies up to 3 GHz, with optional 6 GHz, enabling reliable laser and photodiode analysis through calibrated transmitter and receiver measurements.
This analyzer provides accurate electrical return loss measurements and captures swept frequency responses including second and third harmonics, with distance/time domain measurements for locating reflections and viewing step response.
Testwall can supply the used Keysight (Agilent) 8702D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8702D
