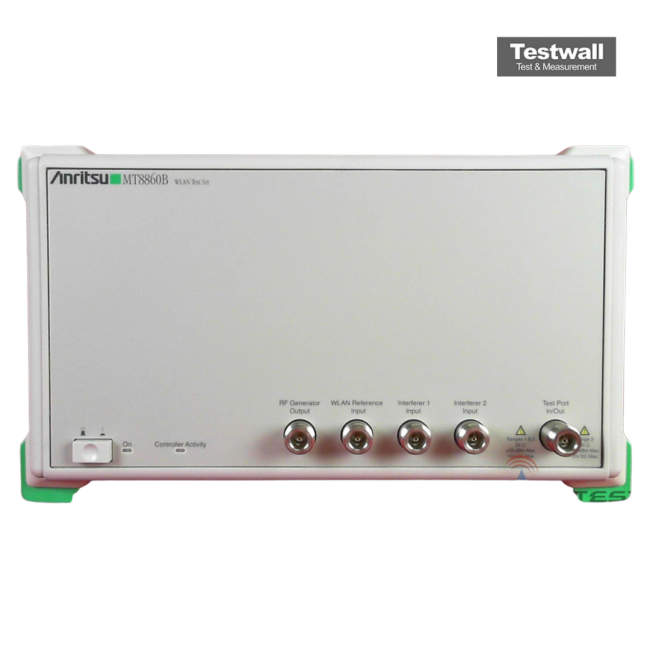

Anritsu MT8860B
| Attribute | Value |
|---|---|
| Frequency Range | 2.4 GHz and 4.9 GHz / 5 GHz bands (IEEE 802.11a/b/g) |
| Supported Standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g |
| Transmitter Power Measurement Range | -10 dBm to +30 dBm |
| Receiver Sensitivity Measurement | Minimum sensitivity down to -95 dBm |
| RF Connector Type | N-Type female (50 Ohm) |
| Interface / Communication | GPIB and Ethernet (LAN) remote control interfaces |
| Operating Temperature Range | 0°C to +40°C |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Dimensions (W x H x D) | 426 mm x 177 mm x 451 mm (4U half-rack) |
| Weight | Approximately 18 kg |
| Model | MT8860B |
|---|
The Anritsu MT8860B is a dedicated WLAN Test Set supporting IEEE 802.11 standards, offering Network and Direct modes for complete transmitter and receiver testing. It integrates measurement functions in a one-box solution, enabling high-speed performance verification for both production lines and design validation. With LANLook software, users gain a Windows-based interface for efficient configuration and graphical analysis.
Engineers use the MT8860B to validate WLAN devices, leveraging its capability to generate, transmit, and analyze WLAN packets. It supports DUT evaluation across both receiver and transmitter functions with precision and reliability.
Testwall can supply the used Anritsu MT8860B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT8860B.
