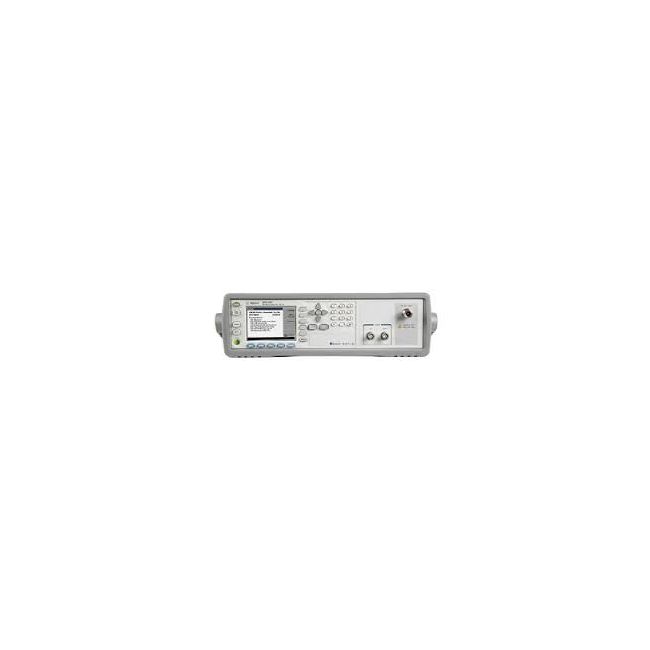

Keysight (Agilent) N4010A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 6 GHz |
| Wireless Standards Supported | Bluetooth, 802.11a/b/g/n (Wi-Fi), ZigBee, UWB |
| Maximum Input Power | +30 dBm (1 Watt) |
| Dynamic Range | Up to 90 dB |
| Measurement Speed | Up to 5x faster than traditional test solutions for wireless connectivity testing |
| RF Ports | 2 RF input/output ports (50 Ohm impedance) |
| Interface/Connectivity | USB, GPIB, LAN (LXI compliant) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Power Requirements | 100–240 VAC, 50/60 Hz, 150 VA maximum |
| Dimensions (W x H x D) | 425 mm x 88 mm x 350 mm (16.7 in x 3.5 in x 13.8 in) |
Keysight Technologies N4010A Options:
- N4010A - 101 - Bluetooth test
- N4010A - 107 - Bluetooth EDR link plus measurements
- N4010A - 113 - Bluetooth audio generation and analysis
- N4010A - 112 - Bluetooth headset profile
- N4010A - 102 - 2.4 GHz wireless LAN Tx/Rx analysis
- N4010A - 103 - 2.4 GHz/5 GHz wireless LAN Tx/Rx analysis
- N4010A - 104 - Fully-flexible arbitrary waveform generation
- N4010A - 108 - 802.11n MIMO modulation analysis
- N4010A - 204 - N4010A Signal Studio license
- N4010A - 110 - Additional input/output connectivity (required with N4010A-102/103)
- N4010A - AX4 - Rack flange kit
- N4010A - 191 - Carry handle kit
| Model | N4010A |
|---|

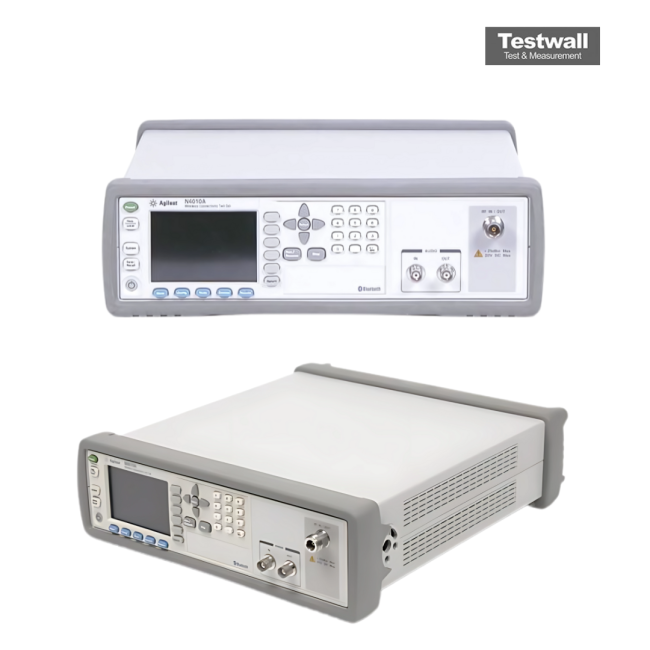

The Keysight (Agilent) N4010A is a configurable wireless connectivity test set supporting Bluetooth, WLAN 802.11a/b/g, and ZigBee standards. It integrates vector signal generation and analysis, operates in the 2.4 GHz and 5 GHz bands, and works with 89601A/89607A software for comprehensive signal evaluation.
Ideal for R&D, verification, and manufacturing, the N4010A improves throughput with fast, repeatable measurements and adapts to emerging wireless technologies with built-in and optional test modes.
Testwall can supply the used Keysight (Agilent) N4010A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4010A.
