Tektronix TCP2020
| Attribute | Value |
|---|---|
| Bandwidth | 50 MHz |
| Current Range | 1 A / 30 A |
| Maximum Peak Current | 50 A (< 1 second) |
| Sensitivity | 10 mA RMS minimum detectable signal |
| Maximum Conductor Size | 5 mm diameter |
| Output | 100 mV/A (1 A range), 10 mV/A (30 A range) |
| DC Accuracy | ±2% of reading |
| Operating Temperature | 0°C to +50°C |
| Compatible Oscilloscopes | Tektronix TDS/TPS/MSO/DPO series with TEKPROBE interface |
| Power Supply | Powered via TEKPROBE interface (no external power required) |
| Model | TCP2020 |
|---|

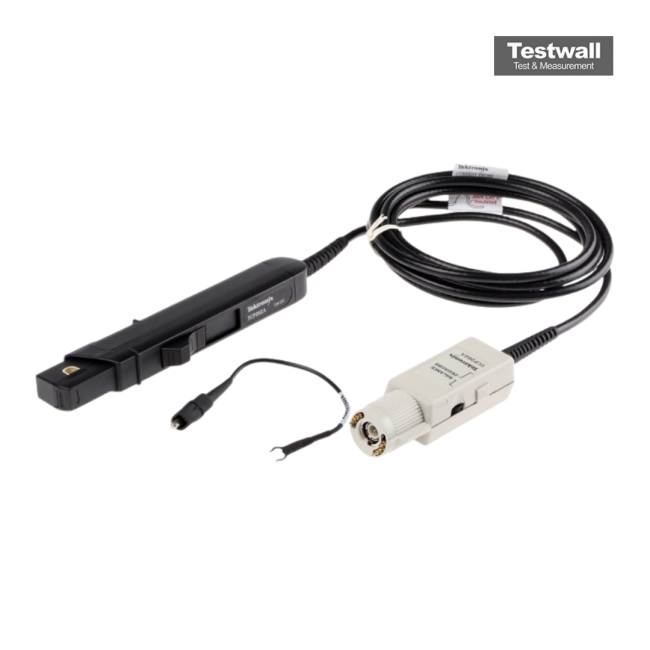

The Tektronix TCP2020 Current Probe offers high-performance AC/DC current measurement with up to 20 ARMS range and bandwidth support up to 50 MHz. Designed for instruments with BNC inputs and >100 kΩ termination, it provides accurate low-current readings down to 10 mA with low noise and high reliability.
Ideal for precise power and circuit analysis in mixed signal applications, it delivers dependable performance for both lab and field testing with minimal signal distortion.
Testwall can supply the used Tektronix TCP2020, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Tektronix TCP2020.
