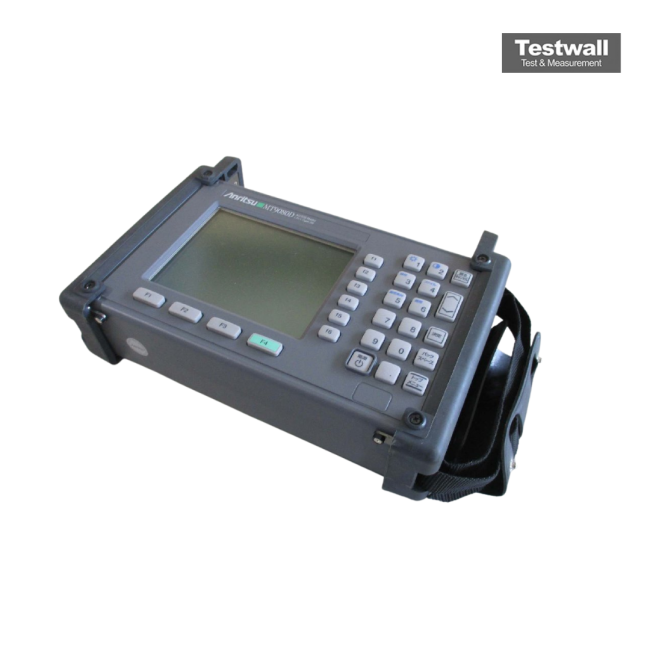

Anritsu MT9080D
| Attribute | Value |
|---|---|
| Wavelength Range | 780 nm to 1650 nm |
| Dynamic Range | Up to 46 dB |
| Distance Range | Up to 256 km |
| Display | 7-inch color TFT LCD touchscreen |
| Measurement Ports | Dual optical ports (single-mode and multimode) |
| Battery Life | Approximately 7 hours of continuous operation |
| Data Storage | Internal memory plus USB and SD card support |
| Connector Interface | Interchangeable optical connector adapters (SC, FC, LC, ST) |
| Operating Temperature | -10°C to +50°C |
| Weight | Approximately 1.5 kg (including battery) |
| Model | MT9080D |
|---|
The Anritsu MT9080D integrates triple-wavelength capability at 1310, 1550, and 1625 nm, delivering comprehensive access fiber testing. It combines OTDR, optical power meter, visible tracing light, and fault locator functions. With 1 m event dead-zone, fine sampling resolution, excellent dynamic range, and Telcordia-compatible reporting, it ensures precise fault detection and efficient network diagnostics. Data management is simplified via waveform comparison, internal storage, and USB extraction.
Its streamlined GUI, quick startup, and optional 100/1000Base‑T Ethernet testing enable real-time ping, traceroute, and throughput checks, reducing reliance on external tools.
Testwall can supply the used Anritsu MT9080D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MT9080D.
