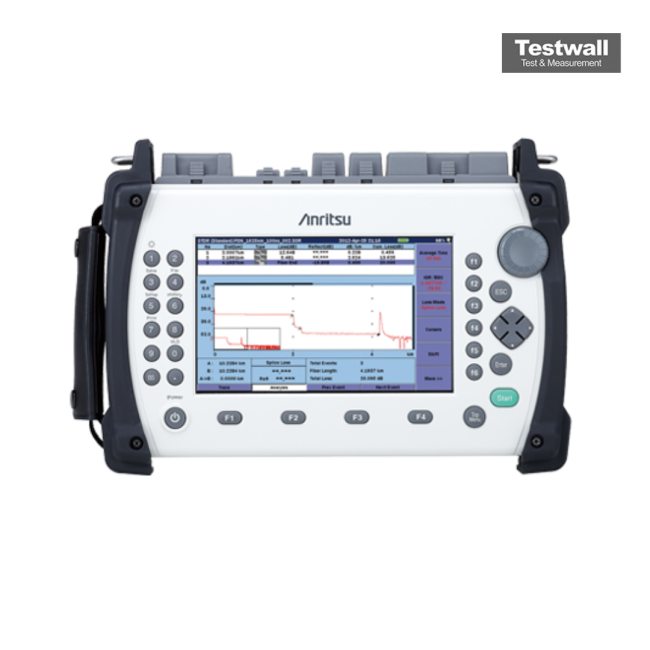

Anritsu MT9083C
| Attribute | Value |
|---|---|
| Wavelengths | 850/1300/1310/1550 nm (multimode and singlemode) |
| Dynamic Range | Up to 46 dB (1310 nm) / Up to 45 dB (1550 nm) |
| Distance Range | Up to 260 km |
| Display | 7-inch color TFT LCD touchscreen |
| Battery Life | Approximately 7 hours of continuous operation |
| Sampling Resolution | 4 cm minimum sampling resolution |
| Event Dead Zone | As short as 0.8 m |
| Attenuation Dead Zone | As short as 4 m |
| Data Storage | Internal memory plus USB and SD card external storage support |
| Operating Temperature | -10°C to +50°C |
Anritsu MT9083C Access Master OTDR Ultra-high Performance Model Options:
- MT9083C - 001 - Ip Network Connection Check Function
- MT9083C - 002 - Visible Laser Diode
- MT9083C - 004 - Smf Optical Power Meter (Upc Only)
- MT9083C - 005 - Smf High Power Optical Power Meter (Upc/Apc)
- MT9083C - 007 - Smf/Mmf Optical Power Meter (Upc/Apc)
- MT9083C - 010 - Protector Option (Includes Rubber Bumpers, Display Cover And Shoulder Strap)
- MT9083C - 011 - Gigabit Ethernet Upgrade (Requires Option Mt9083A/B/C-001)
- MT9083C - 053 - 1310Nm / 1550Nm Singlemode
- MT9083C - 055 - 1310Nm / 1550Nm / 1650Nm Singlemode
- MT9083C - 056 - 1310Nm / 1490Nm / 1550Nm Singlemode
- MT9083C - 057 - 1310Nm / 1550Nm / 1625Nm Singlemode
- MT9083C - 058 - 1310Nm / 1490Nm / 1550Nm / 1625Nm Singlemode
- MT9083C - 059 - 1310Nm / 1383Nm / 1550Nm / 1625Nm, Singlemode
- MT9083C - 063 - 850Nm / 1300Nm Mmultimode + 1310Nm / 1550Nm Singlemode
| Model | MT9083C |
|---|
The Anritsu MT9083C Access Master OTDR Ultra-high Performance Model combines cutting-edge optical time-domain reflectometry with ultra-high sensitivity, low noise floor, high dynamic range, and precision, delivering industry-leading fiber characterization in a streamlined, portable form factor with ruggedized housing.
Optimized for diverse access network applications, this versatile OTDR features advanced signal processing, intuitive user interface, rapid event detection, multi-wavelength support, and customizable test parameters with remote control capability and robust connector options for seamless integration, enabling efficient field diagnostics and infrastructure validation across complex fiber installations.
Testwall can supply the used Anritsu MT9083C Access Master OTDR Ultra-high Performance Model, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality, all backed by ISO 9001:2015 certified processes. Testwall offers tailored after-sales support, customizable service plans, and expert technical training for seamless deployment and ongoing maintenance.
