Anritsu MU150001A
| Attribute | Value |
|---|---|
| Product Family | MT1000A Network Master Pro |
| Module Type | 100G Multirate Module |
| Supported Rates | 100GbE, OTU4, 40GbE, OTU3, 10GbE, OTU2, OTU1, GbE, OC-192/STM-64, OC-48/STM-16 |
| Interface Type | CFP2 Optical Interface |
| Test Applications | RFC 2544, Y.1564, OTN Testing, BERT, Packet Jitter, Latency |
| Optical Connector | LC Duplex |
| Wavelength | 1310 nm / 1550 nm |
| Compatible Platform | Anritsu MT1000A Network Master Pro |
| Power Consumption | Powered via MT1000A mainframe slot |
| Standards Compliance | IEEE 802.3, ITU-T G.709, ITU-T Y.1564, RFC 2544 |
| Model | MU150001A |
|---|

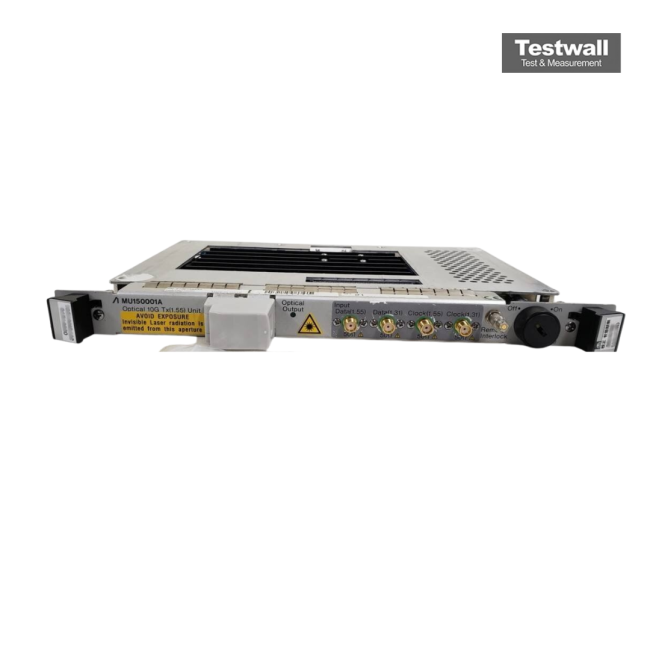

The Anritsu MU150001A is a 1550nm 10Gb Transmit Card designed for use with the MP1570A. It supports bit rates of 9953.28 Mbit/s and 2488.32 Mbit/s (option), with an optical output wavelength in the 10G-1550 nm band. The optical output level is –4 dBm ±3 dB, complying with IEC825-1 Class 3A and 21CFR1040.10 Class IIIb safety standards. The unit features an FC-PC (SM-F) optical connector, SMA 50Ω electrical connectors, and reliable clock and data input handling with defined voltage levels.
This transmit card is ideal for high-speed optical transmission applications and testing scenarios where stable wavelength and output precision are essential. It ensures compatibility and performance reliability when integrated into demanding telecom and datacom environments.
Testwall can supply the used Anritsu MU150001A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MU150001A.
