Anritsu MU181000B
12.5 GHz 4-port synthesiser module for MP1800A/MP1900A BERT
0.1 to 12.5 GHz, 1 kHz/1 MHz steps Frequency Range
4 Clock Outputs
+/-1000 ppm, 1 ppm steps Frequency Offset
0.4 to 1 Vp-p (AC) Output Level
<=-80 dBc/Hz at 10 kHz offset SSB Phase Noise
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 to 12.5 GHz, 1 kHz/1 MHz steps |
| Clock Outputs | 4 |
| Frequency Offset | +/-1000 ppm, 1 ppm steps |
| Output Level | 0.4 to 1 Vp-p (AC) |
| SSB Phase Noise | <=-80 dBc/Hz at 10 kHz offset |
| Intrinsic Jitter | <=20 ps p-p |
| Inter-channel Skew | <=10 ps (12.5 GHz) |
| Jitter Modulation (opt. 001) | External mod. input 9 Hz to 1 GHz; SSC 30-33 kHz, 50 kHz deviation |
Anritsu MU181000B Options:
- MU181000B-001 - Jitter modulation
- MU181000B-101 - Jitter modulation retrofit

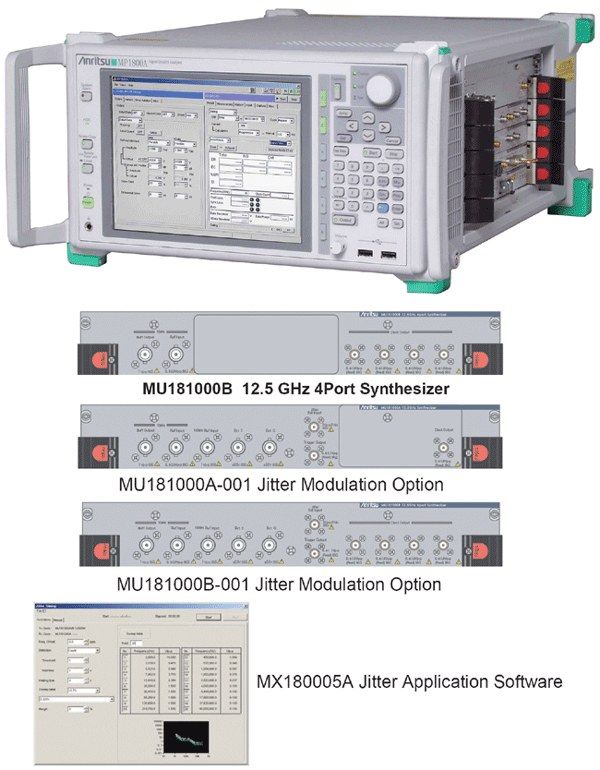

The MU181000B is a 0.1 to 12.5 GHz clock synthesiser plug-in with four clock outputs, supplying reference clocks to multiple PPG/ED modules. Option 001 adds jitter modulation and SSC for jitter tolerance testing.
Occupies two slots in the MP1800A and is also offered as an MP1900A module; it is combined with the MU181500B jitter modulation source for SJ/RJ/BUJ/SSC stress.
Testwall can supply the used Anritsu MU181000B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MU181000B.
