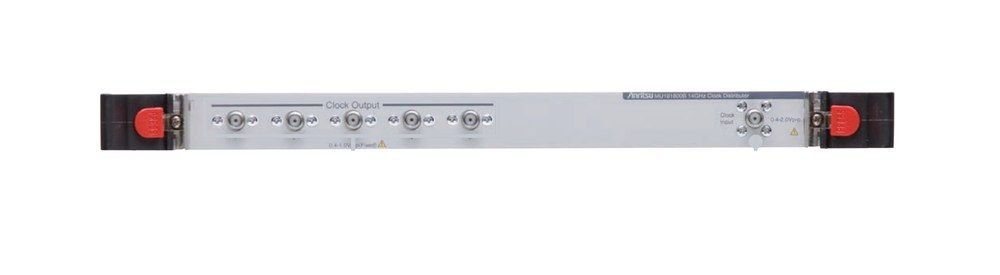

Anritsu MU181800B
14 GHz clock distributor module, 5 outputs, for MP1800A
0.1 to 14 GHz (14.1 GHz with opt. 005) Frequency Range
5, single-ended Clock Outputs
0.4 to 2.0 Vp-p Clock Input Level
0.4 to 1.0 Vp-p Output Level
50 +/-10% (50% input duty) Duty Cycle
| Attribute | Value |
|---|---|
| Frequency Range | 0.1 to 14 GHz (14.1 GHz with opt. 005) |
| Clock Outputs | 5, single-ended |
| Clock Input Level | 0.4 to 2.0 Vp-p |
| Output Level | 0.4 to 1.0 Vp-p |
| Duty Cycle | 50 +/-10% (50% input duty) |
| Channel Skew | <=10 ps at 14 GHz |
| Connectors | SMA (f), 50 ohm |
Anritsu MU181800B Options:
- MU181800B-005 - 14.1 GHz extension
- MU181800B-105 - 14.1 GHz extension retrofit
The MU181800B is a single-card clock distribution plug-in that takes one clock input and delivers five single-ended outputs from 0.1 to 14 GHz (14.1 GHz with option 005). It allows one clock source to drive up to five PPG modules with channel skew of 10 ps or less.
Fits the MP1800A signal quality analyser for multi-channel synchronised PPG set-ups; replaces the MU181800A.
Testwall can supply the used Anritsu MU181800B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MU181800B.
