Keysight (Agilent)

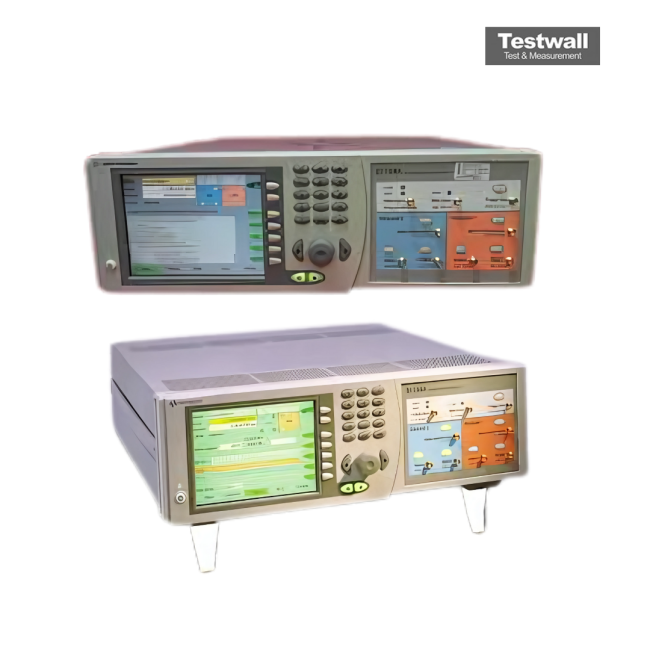

Keysight (Agilent) 81134A
3.35 Gbps Pattern Generator
2 Channels
15 MHz to 3.35 GHz Repetition Rate
up to 3.35 Gb/s Data Rate
50 mV to 2 V, -2 to +3 V Amplitude
100 ps to period - 100 ps Pulse Width
| Attribute | Value |
|---|---|
| Channels | 2 |
| Repetition Rate | 15 MHz to 3.35 GHz |
| Data Rate | up to 3.35 Gb/s |
| Amplitude | 50 mV to 2 V, -2 to +3 V |
| Pulse Width | 100 ps to period - 100 ps |
| Transition Times | < 90 ps (10/90), < 60 ps (20/80) |
| Timing Resolution | 1 ps |
| Jitter | < 4 ps RMS (clock), < 5 ps RMS (data) |
| Delay | -5 to 230 ns |
| Pattern Memory | 8 kbit per channel, up to 12 Mbit, PRBS 2^n - 1, n = 5 to 15, 23, 31 |
| Output Impedance | 50 Ω |
| Interfaces | GPIB, LAN, USB |
| Dimensions | 426 × 145 × 553 mm |
| Weight | 14.8 kg |
The Keysight (Agilent) 81134A is engineered for high-speed applications with precise multi-level signaling and fast rise times, enabling accurate testing of receivers and backplanes. It features hardware-based PRBS, memory-based pattern generation, a graphical UI for parameter control, and low intrinsic jitter for distortion-free signal integrity. Testwall can supply the used Keysight (Agilent) 81134A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 81134A.
