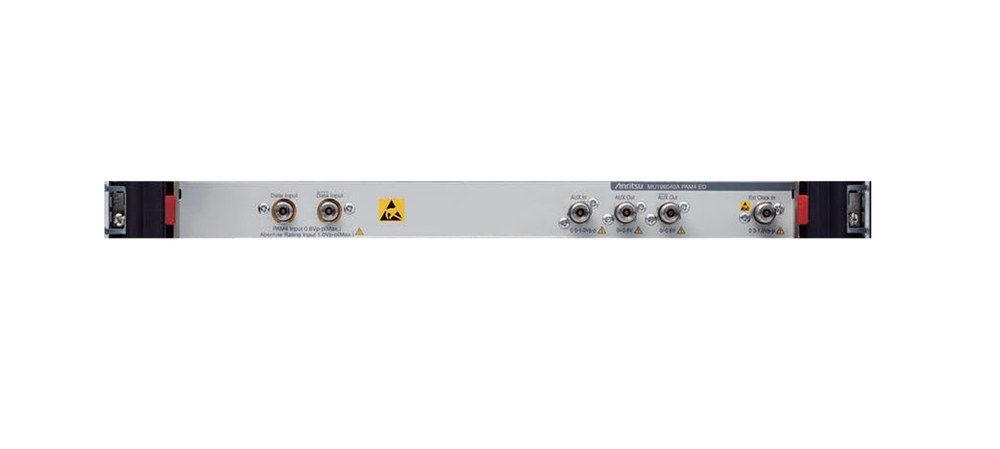

Anritsu MU196040B
| Attribute | Value |
|---|---|
| Operation Rate | 2.4 to 58.2 Gbaud (PAM4); 2.4 to 64.2 Gbaud (NRZ), option dependent |
| Channels | 1 per module; up to 4 per MP1900A |
| Input Amplitude (NRZ) | 0.05 to 1.0 Vp-p (<=32.1 Gbaud); 0.1 to 1.0 Vp-p (>32.1 Gbaud) |
| Input Amplitude (PAM4) | 0.3 to 1.0 Vp-p (<=32.1 Gbaud); 0.4 to 1.0 Vp-p (>32.1 Gbaud) |
| Sensitivity (PAM4 eye height) | 23 mV at 26.5625 Gbaud; 36 mV at 53.125 Gbaud |
| Sensitivity (NRZ eye height) | 19 mV at 26.5625 Gbaud; 21 mV at 53.125 Gbaud |
| Clock Recovery (option) | 2.4 to 32.1 Gbaud; 51 to 58.2 Gbaud |
| Equaliser (option) | Low-frequency EQ (<=1 GHz, 2 dB typ.) plus DFE (1.4 dB typ.) |
| PAM4 Patterns | SSPRQ, PRBS13Q, PRBS31Q and others |
The MU196040B is a single-channel PAM4/NRZ error detector plug-in for the MP1900A, designed for error-free measurement of 116 Gbit/s PAM4 signals. It offers optional built-in clock recovery, equalisation and PAM4 MSB/LSB/symbol error counting, and supports CEI-112G-VSR stressed receiver input testing.
Fits the MP1900A mainframe (up to 4 channels per mainframe) and pairs with the MU196020A PAM4 PPG. Operating rate (32.1 Gbaud or 58.2/64.2 Gbaud), clock recovery, equaliser and PAM4 counter are option-selected.
Testwall can supply the used Anritsu MU196040B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MU196040B.
