Anritsu MW82119A

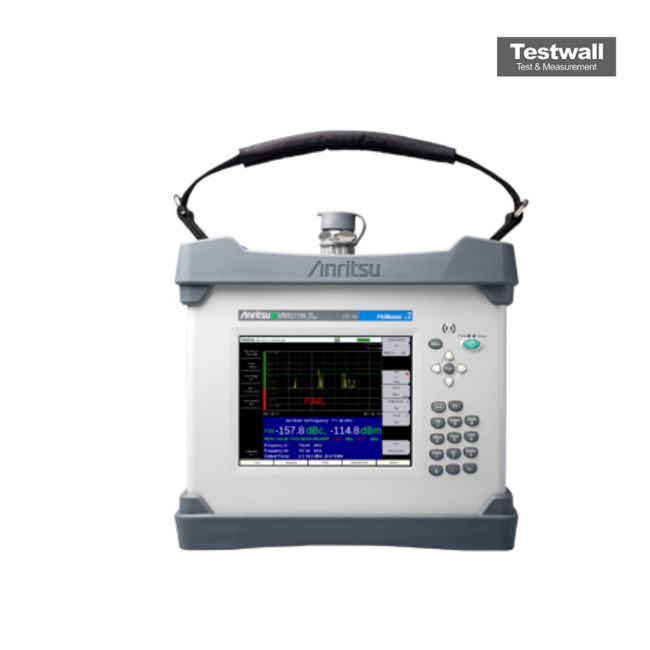

AnritsuPIM MASTER MW82119A Analyser The AnritsuPIM Master MW82119A is a high-power, portable, Analyser with Anritsu's patented Distance-to-PIM (DTP) technology providing accurate and efficient location of PIM fault sources resulting in quicker site repairs and lower cost. The AnritsuPIM Master MW82119A Analyser's high performance design - small size, light weight, and battery operation - make it ideal for testing at difficult to access sites including Remote Radio Head installations and indoor Distributed Antenna Systems.Features and Specifications of the AnritsuMW82119A include:Features:

Small size, lightweight, and portable

Battery-operated

High power Passive Intermodulation (PIM) testing solution for the major wireless standards in use around the world

Applications:

• Remote Radio Head (RRH) installations
• Indoor Distributed Antenna Systems (DAS)

Remote Radio Head (RRH) installations

Indoor Distributed Antenna Systems (DAS)

Specifications:

Measurements:

• PIM vs Time:  3rd, 5th, and 7th order intermodulation product when in receive band (user selectable)
• Noise Floor:  Noise Floor vs Time at selected IM product frequency
• Distance-to-PIM:  Distance and relative magnitude of multiple PIM sources
• Swept PIM:  3rd, 5th, and 7th order intermodulation product when in receive band (user selectable)

Instrument setup parameters:

• Frequency:
• Carrier F1
• Carrier F2
• Intermodulation Order (3rd, 5th, 7th)
• Amplitude:
• Ref value
• Scale
• Auto range (On/Off)
• Amplitude tone (On/Off)
• Setup:
• Output power
• Test duration (1 s to 1,200 s)
• Limit lines:
• Limit (Upper/Lower)
• On/Off
• Limit move
• Limit alarm (On/Off, Pass/Fail indicator)
• GPS:
• On/Off
• 3.3/5.0 V
• DTP:
• Cable velocity
• Distance

PIM measurement ranges:

• RF Test power:
• Two CW tones 25 dBm to 46 dBm
• 0.1 dBm steps
• Residual PIM performance:
• < -117
• < -125 dBm typical (2x 43 dBm test tones)
• PIM measurement range: -70 dBm to -130 dBm

PIM master connectors:

• Test port:
• 7/16 DIN
• female, 50 Ω
• Dual USB type A:  2x Type A (connect USB flash drive and USB power sensor)
• USB Mini-B:  1x Mini-B (connect to PC for data transfer)
• GPS:  SMA, female (with GPS option only)
• External power:
• 2.1 mm x 5.5 mm barrel connector
• 12 to 15 VDC
• < 5.0 A

Display:

• Size:  213 mm (8.4 in) touch screen
• Resolution:  800 x 600

Battery:

• Type:  Li-Ion
• Battery operation:  3.0 hours, typical

Power:

• Emergency stop:  Red push button
• AC/DC Adapter:
• Input:
• 100-240 VAC
• 50/60 Hz
• Output: 12 VDC
