Rohde & Schwarz FSWP50
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 50 GHz |
| Phase Noise Measurement Range | Up to -170 dBc/Hz |
| Residual Phase Noise Floor | -130 dBc/Hz at 1 kHz offset (typical) |
| Dynamic Range | Up to 167 dB (1/f noise dynamic range) |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (with external attenuator) |
| Measurement Modes | Phase noise, amplitude noise, baseband noise, spectrum analysis, VCO characterization |
| Cross-Correlation | Yes, built-in cross-correlation for improved noise floor |
| Display | 12.1-inch XGA touchscreen display |
| Connectivity / Interfaces | USB, LAN (Ethernet), GPIB (optional), HDMI |
Rohde & Schwarz FSWP50 Options:
- FSWP50 - B1 - Spectrum Analyzer, 10 Hz to 50 GHz
- FSWP50 - B4 - High Stability OCXO
- FSWP50 - B8 - Resolution Bandwidth > 10 MHz, for R&S FSWP50
- FSWP50 - B10 - External Generator Control
- FSWP50 - B13 - Highpass Filter for Harmonic Measurements
- FSWP50 - B18 - Spare Solid State Drive (removable hard drive)
- FSWP50 - B21 - LO/IF Ports for External Mixers
- FSWP50 - B24 - RF Preamplifier, 100 kHz to 50 GHz
- FSWP50 - B60 - Cross-Correlation, 50 GHz
- FSWP50 - B61 - Cross-Correlation (low phase noise), 50 GHz
- FSWP50 - B64 - Residual Phase Noise Measurements
- FSWP50 - B80 - 80 MHz Analysis Bandwidth
- FSWP50 - B320 - 320 MHz Analysis Bandwidth
- FSWP50 - K4 - Pulsed Phase Noise Measurements
- FSWP50 - K6 - Pulse Measurements
- FSWP50 - K6S - Time Sidelobe Measurements
- FSWP50 - K7 - Analog Modulation Analysis for AM/FM/φM
- FSWP50 - K30 - Noise Figure Measurements
- FSWP50 - K70 - Vector Signal Analysis
- FSWP50 - K33 - Security Write Protection for Solid State Drive
| Model | FSWP50 |
|---|

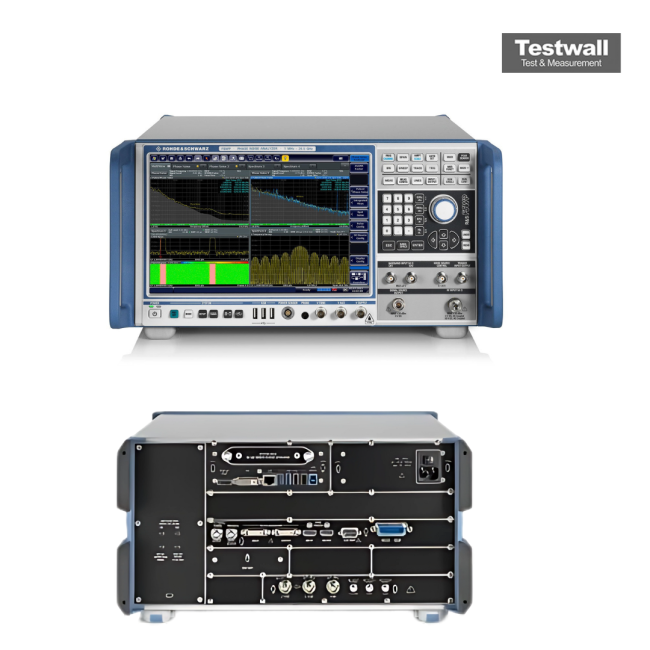

The El Rohde & Schwarz FSWP 50 Phase Noise Analyzer and VCO Tester features high sensitivity due to low-noise internal sources and cross-correlation. It measures phase noise on stable sources like radar systems in seconds and includes high-end spectrum analysis and pulsed signal capabilities.
It offers rapid measurements of phase and amplitude noise, transient analysis, and additive phase noise on pulsed signals, all within a 50 GHz signal analyzer framework.
Testwall can supply the used El Rohde & Schwarz FSWP 50 Phase Noise Analyzer and VCO Tester, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the El Rohde & Schwarz FSWP 50 Phase Noise Analyzer and VCO Tester.
