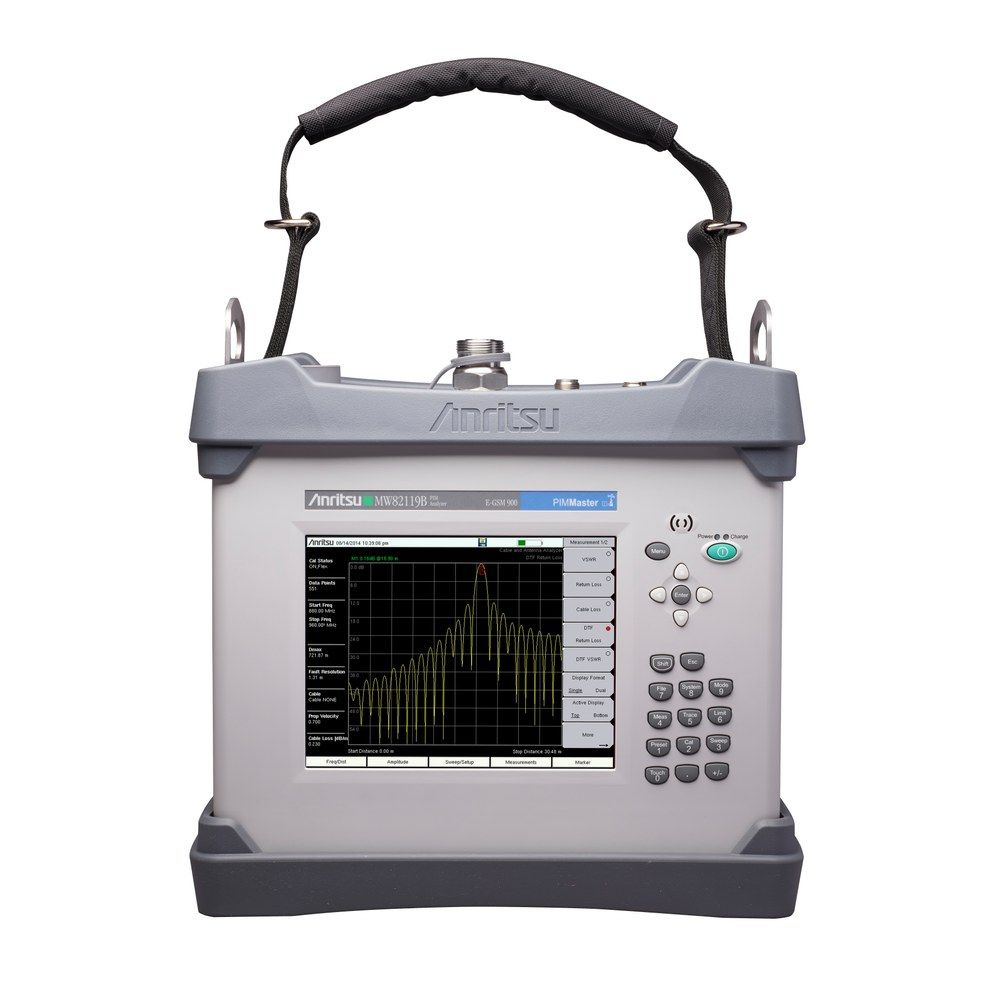

Anritsu MW82119B
| Attribute | Value |
|---|---|
| PIM Test Power | 2 x CW tones, +20 dBm to +46 dBm (0.1 to 40 W), 0.1 dB steps |
| PIM Measurement Range | -50 dBm to -140 dBm (Rev 2); -70 to -140 dBm (Rev 1) |
| Residual PIM | < -117 dBm, -125 dBm typical (2 x 43 dBm tones) |
| Distance-to-PIM | Included; resolution < 3 m typical with Enhanced Resolution |
| Cable & Antenna Analyser | 2 MHz to 3 GHz (Option 331) |
| Test Port | 7/16 DIN female, 50 Ω |
| Display | 8.4 in (213 mm) touchscreen, 800 x 600, daylight-viewable |
| Battery | Li-ion, 3.0 hours typical |
| Dimensions | 350 x 314 x 152 mm |
| Weight | 9.2 kg to 12.6 kg, depending on frequency option |
Anritsu MW82119B Options:
- 0700 - LTE 700 MHz (North America, Upper and Lower)
- 0701 - APT 700 MHz
- 0800 - LTE 800 MHz
- 0850 - Cellular 850 MHz
- 0900 - E-GSM 900 MHz
- 0902 - E-GSM 900 MHz with IM2 (China)
- 0180 - DCS 1800 MHz
- 0194 - PCS/AWS 1900/2100 MHz
- 0210 - UMTS 2100 MHz
- 0260 - LTE 2600 MHz
- 0600 - LTE 600 MHz with 1900 MHz
- 0331 - Site Master cable and antenna analyser, 2 MHz to 3 GHz
- 0019 - High-accuracy power meter (requires USB power sensor)
- 0031 - GPS receiver (requires GPS antenna)
The Anritsu MW82119B PIM Master is a 40 W, battery-operated passive intermodulation analyser for certifying cable and antenna systems, including at the top of the tower on LTE remote radio head installations. It measures PIM and Distance-to-PIM, and with Option 331 adds Site Master line sweep (return loss, VSWR, cable loss, DTF) from 2 MHz to 3 GHz. Each unit is built for a specific frequency band selected by a required frequency option.
Frequency options cover LTE 600/700/800, 850, E-GSM 900, DCS 1800, PCS/AWS 1900/2100, UMTS 2100 and LTE 2600 MHz bands. Additional options add a high-accuracy power meter and GPS receiver.
Testwall can supply the used Anritsu MW82119B, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Anritsu MW82119B.
