Anritsu MW9076B
| Attribute | Value |
|---|---|
| Wavelength Range | 1250 nm to 1650 nm |
| Dynamic Range | Up to 46 dB |
| Distance Range | Up to 256 km |
| Measurement Type | Optical Time Domain Reflectometer (OTDR) |
| Pulse Width | 3 ns to 20000 ns |
| Sampling Resolution | 0.05 m |
| Display | 8.4-inch color LCD touchscreen |
| Battery Life | Approximately 7 hours of continuous operation |
| Connector Interface | Universal connector adapter (FC, SC, ST, LC compatible) |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
Anritsu MW9076B Options:
- MW9076B - 01 - Visible light source (635 nm)
- MW9076B - 02 - Optical power meter (measurement range: –70 to +3 dBm continuous light, –73 to 0 dBm modulated light)
- MW9076B - 03 - High power optical power meter (measurement range: –50 to +23 dBm continuous light, –53 to +20 dBm modulated light)
| Model | MW9076B |
|---|

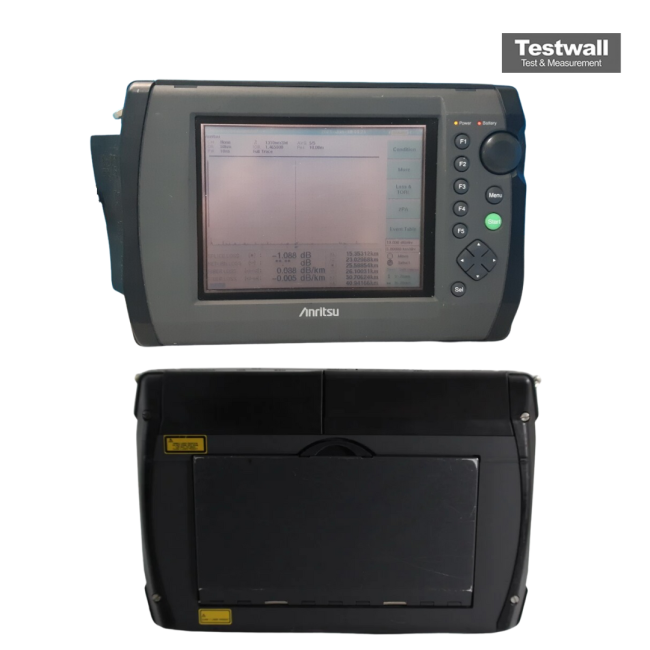

The Anritsu MW9076B is a compact handheld OTDR designed for precise fiber fault detection and loss analysis in single-mode networks. Operating at dual wavelengths of 1310 nm and 1550 nm, it offers dynamic ranges of up to 45 dB and 43 dB respectively. With a Fresnel dead zone of ~1.6 m and a backscatter dead zone of 8 m, it ensures exceptional near-end measurement accuracy. The device supports ultra-fast auto sweeps (~10 s) and real-time sweeps (~0.15 s) powered by ASIC acceleration. It delivers high-resolution 5 cm waveforms using 50 000 sample points, and includes ~18 MB internal memory with support for PC-card and hard-disk storage.
Additional features include an optional 635 nm visible light source, optical power meter modules with ranges –70 to +3 dBm or –50 to +23 dBm, and external optical channel selectors for advanced multi-core fiber measurements via RS-232C connectivity.
