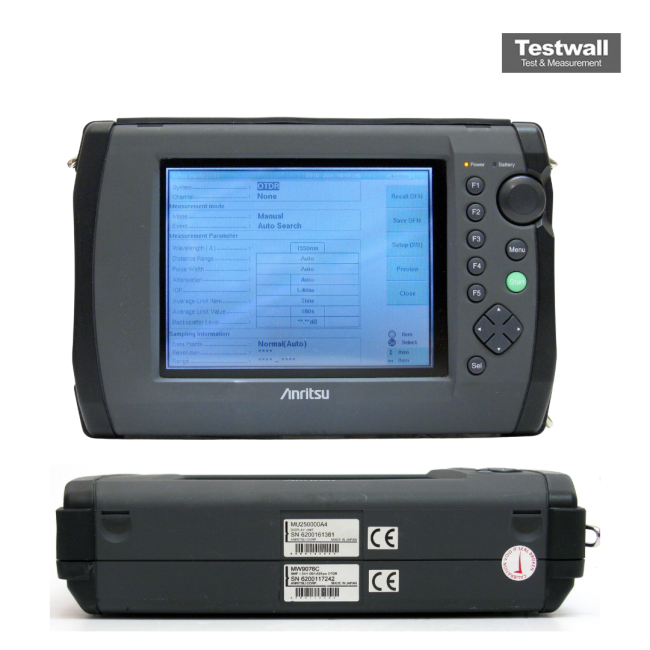

Anritsu MW9076C
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1650 nm |
| Dynamic Range | Up to 46 dB |
| Distance Range | Up to 256 km |
| Measurement Type | Optical Time Domain Reflectometer (OTDR) |
| Pulse Width | 3 ns to 20000 ns |
| Sampling Resolution | 0.05 m |
| Loss Measurement Accuracy | ±0.05 dB/dB |
| Display | 8.4-inch color LCD touchscreen |
| Interface Connectivity | USB, Ethernet (LAN), RS-232C |
| Power Supply | AC 100–240 V, 50/60 Hz; Battery operation supported |
Anritsu MW9076C Options:
- MW9076C - 01 - Visible light source (635 nm)
- MW9076C - 02 - Optical power meter (measurement range: –70 to +3 dBm continuous light, –73 to 0 dBm modulated light)
- MW9076C - 03 - High power optical power meter (measurement range: –50 to +23 dBm continuous light, –53 to +20 dBm modulated light)
| Model | MW9076C |
|---|
The Anritsu MW9076C OTDR offers triple-wavelength operation at 1310 nm, 1550 nm, and 1625 nm, delivering superior dynamic range (≈41.5 dB at 1.31 μm, ≈39.5 dB at 1.55 μm, ≈37 dB at 1.625 μm). It ensures precise fault detection with short dead zones (~1.6 m Fresnel / 8 m backscatter), supporting accurate measurements near connectors and splices.
Equipped with real-time and auto sweep modes, waveform capture, and versatile data storage via PC cards or internal memory, the MW9076C is ideal for advanced fiber network monitoring. Optional optical power meter and visible light source enhance its usability.
Testwall can supply the used Anritsu MW9076C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MW9076C.
