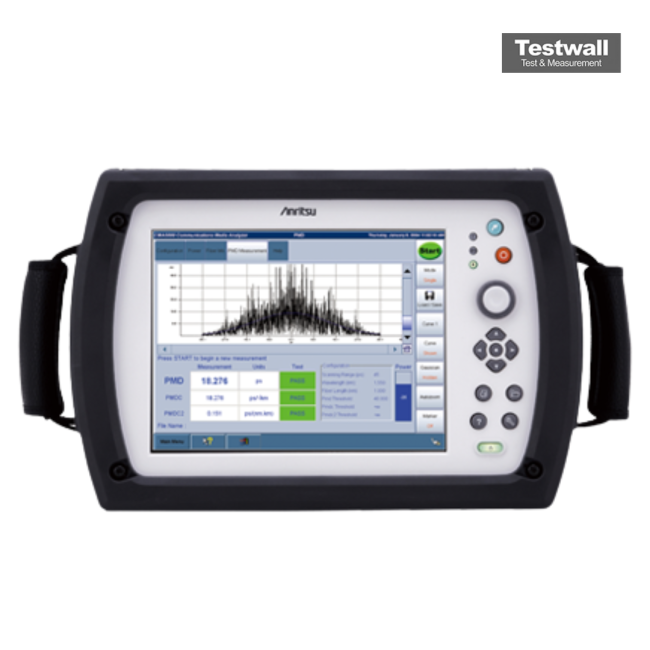

Anritsu CMA5254
| Attribute | Value |
|---|---|
| Wavelengths Supported | 1310 nm / 1550 nm |
| Dynamic Range | Up to 40 dB |
| Measurement Functions | OTDR, ORL, Optical Loss, and Fiber End-Face Inspection |
| Pulse Widths | 3 ns to 20 µs |
| Distance Range | Up to 260 km |
| Display | Color LCD touchscreen display |
| Battery Life | Approximately 8 hours of continuous operation |
| Connector Interface | Universal adapter compatible with SC, FC, LC, and ST connectors |
| Data Storage | Internal memory with USB and CompactFlash card support |
| Operating Temperature | -10°C to +50°C (14°F to 122°F) |
| Model | CMA5254 |
|---|
The Anritsu CMA5254 is a high-dynamic-range OTDR engineered for extremely long-link measurements, delivering reach beyond 45–50 dB and fiber span capability of up to ~250 km. It features extreme sensitivity and sub-meter-resolution event detection, smoothly integrated into the CMA5000a platform for unified reporting and streamlined operation.
Its robust design and precision make it ideal for ultra-long-haul networks and metro backbones, simplifying validation of extended fiber infrastructure with high accuracy.
Testwall can supply the used Anritsu CMA5254, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu CMA5254.
