Anritsu MW9076D
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1650 nm |
| Dynamic Range | Up to 46 dB |
| Distance Range | Up to 256 km |
| Measurement Accuracy | ±0.05 dB/dB |
| Pulse Width | 3 ns to 20000 ns |
| Sampling Resolution | 0.05 m |
| Dead Zone (Event) | 0.8 m (typical) |
| Optical Connector Interface | FC/APC (interchangeable) |
| Display | 8.4-inch color TFT LCD touchscreen |
| Power Supply | AC 100–240 V, 50/60 Hz; Battery operation supported |
Anritsu MW9076D Options:
- MW9076D - 01 - Visible LD (factory option)
- MW9076D - 37 - FC connector (user replaceable)
- MW9076D - 38 - ST connector (user replaceable)
- MW9076D - 39 - DIN connector (user replaceable)
- MW9076D - 40 - SC connector (user replaceable)
- MW9076D - 43 - HMS-10/A connector (user replaceable)
| Model | MW9076D |
|---|

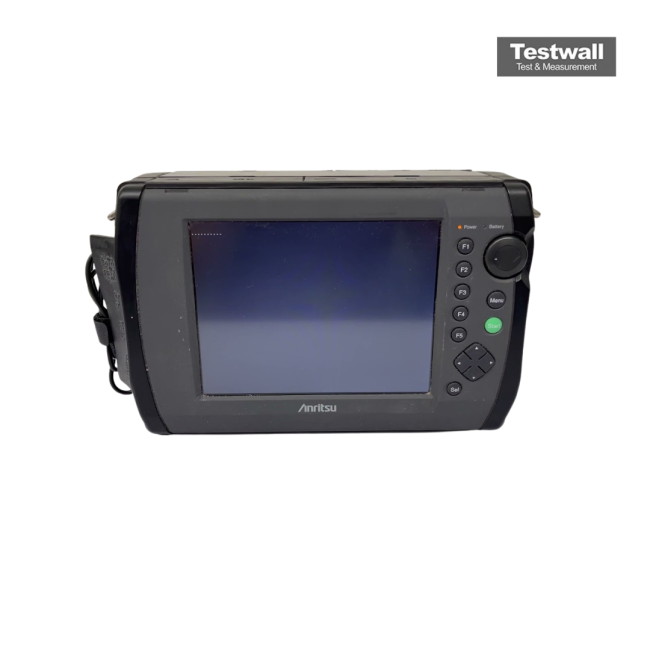

The Anritsu MW9076D mini-OTDR delivers rapid measurements up to five times faster than the MW9070B, with advanced three and four-wavelength configurations. Featuring a high dynamic range of 45 dB, a short 8 m dead zone, and 5 cm resolution with 50,000 sampling points, it ensures precise analysis. The 8.4-inch TFT-LCD color display and fast lithium-ion charging provide reliable usability in both indoor and outdoor environments.
Ideal for optical fiber construction and maintenance, the MW9076D enables fast chromatic dispersion measurement, efficient real-time sweeps, and accurate long-distance testing with superior clarity.
Testwall can supply the used Anritsu MW9076D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu MW9076D.
