Anritsu S331C
| Attribute | Value |
|---|---|
| Frequency Range | 25 MHz to 3.3 GHz |
| Measurement Modes | Cable & Antenna Analyzer (RLVS), Spectrum Analyzer, Power Meter |
| Dynamic Range | Up to 90 dB |
| Return Loss Range | 0 to 60 dB |
| VSWR Range | 1.00 to 65.00 |
| Distance-to-Fault (DTF) Range | Up to 3000 meters (depending on cable type) |
| Display | 7-inch color LCD touchscreen, 800 x 480 resolution |
| Battery Life | Approximately 3.5 hours with internal Li-Ion battery pack |
| Connector Type | N-Type (female), 50 Ohm |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Anritsu S331C Options:
- S331C - Option 5 - RF Power Monitor (RF Detector not included)
| Model | S331C |
|---|

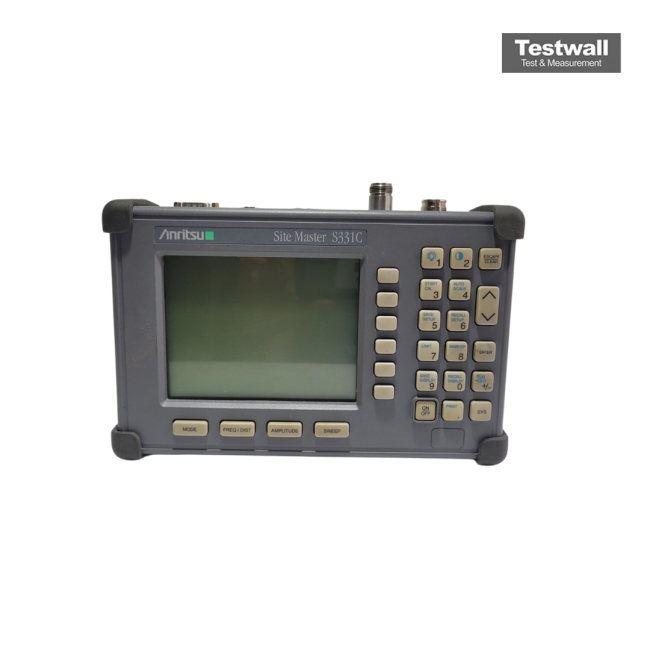

The Anritsu Site Master S331C covers a frequency range from 25 MHz to 3300 MHz, providing precise return loss, SWR, cable loss, and distance-to-fault measurements. It features patented RF interference rejection, extended memory up to 200 traces, and a large VGA display with adjustable resolution. With its integral synthesized signal generator, RS232 interface, and field-replaceable battery, it ensures accuracy and flexibility for demanding RF testing.
Designed for wireless infrastructure maintenance and commissioning, the S331C supports VHF, broadcasting, paging, cellular, PCS/GSM, ISM, and WLL applications. It offers trace storage, time-stamped data, software analysis, and an optional wattmeter for power measurements.
Testwall can supply the used Anritsu Site Master S331C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Anritsu Site Master S331C.
